Oil Pan Installation Engine Lubrication Oil Sump/Pan

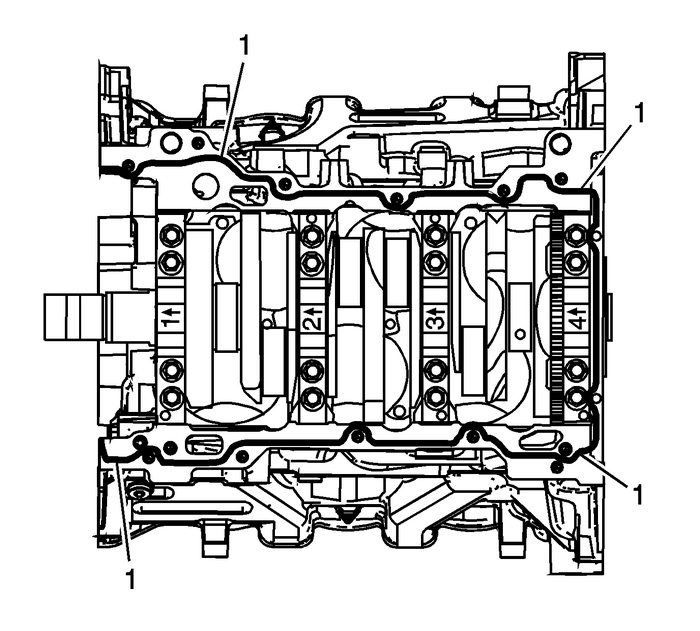

Place a 3-mm (0.118-in) bead of RTVsealant on the block pan rail and the crankshaft rear oil sealhousing-(1). Refer toAdhesives, Fluids, Lubricants, and Sealersfor recommendedsealant.

Oil Pan Installation Engine Lubrication Oil Sump/Pan

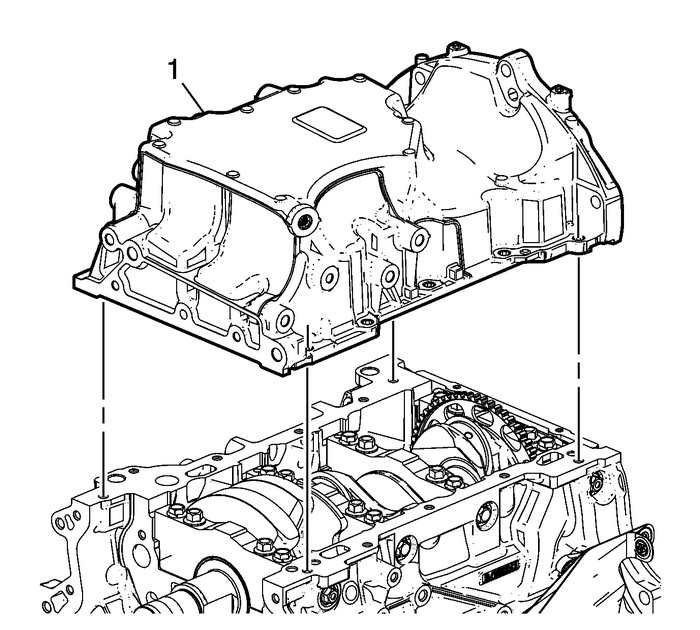

Position the oil pan-(1) onto the block.

Oil Pan Installation Engine Lubrication Oil Sump/Pan

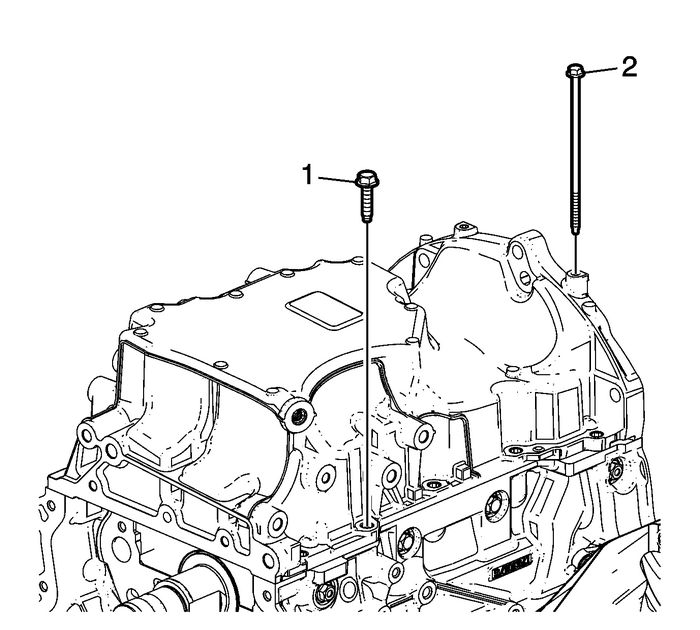

Loosely install the oil pan bolts-(1)and-(2).

Oil Pan Installation Engine Lubrication Oil Sump/Pan

Caution:Refer toFastener Caution.

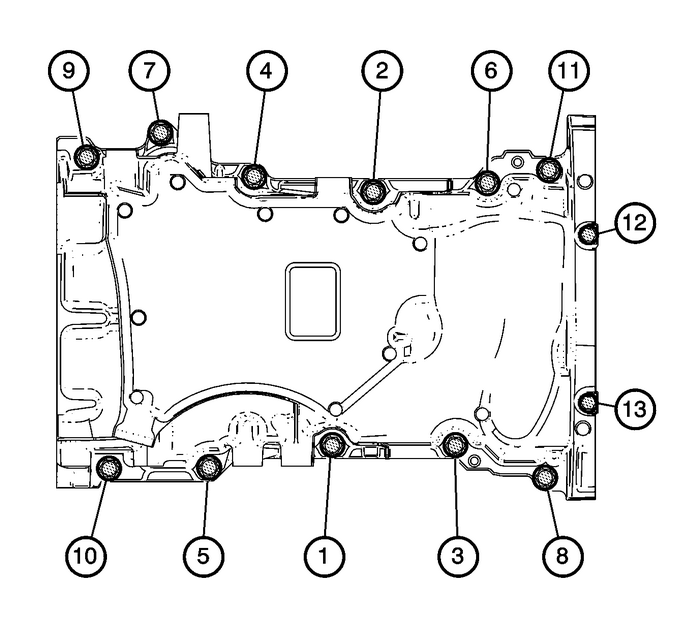

Tighten the oil pan bolts in sequence shown.Tighten the 8-mm bolts-(1–11)to25-Y(18-lb-ft).Tighten the 6-mm bolts-(12, 13) to10-Y(89-lb-in).
