Oil Pan Disassemble Engine Lubrication Oil Sump/Pan

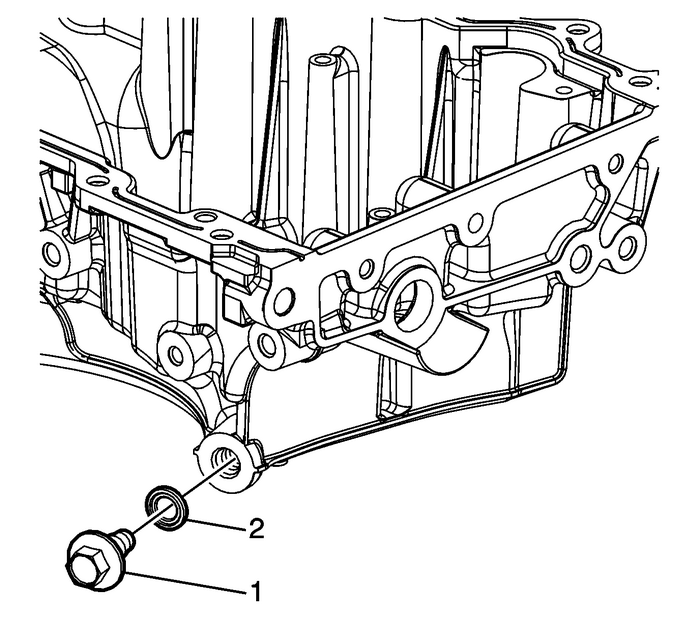

Remove the oil pan drain plug-(1) and seal-(2).

Oil Pan Disassemble Engine Lubrication Oil Sump/Pan

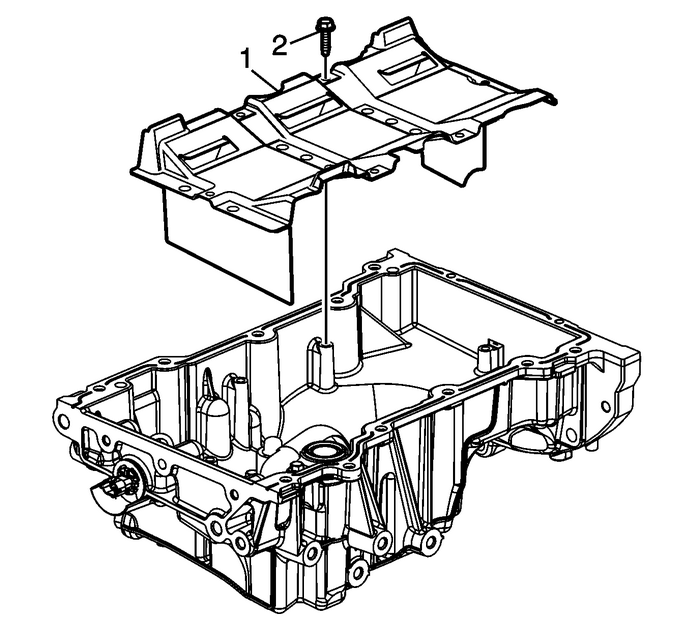

Remove the oil pan scraper bolts-(2).Remove the oil pan scraper-(1).

Oil Pan Disassemble Engine Lubrication Oil Sump/Pan

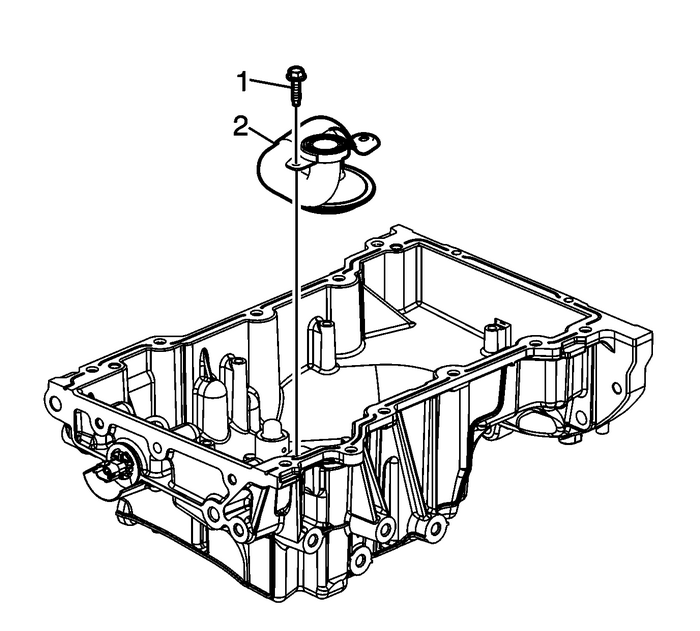

Remove the oil suction pipe bolts-(1).Remove the oil suction pipe-(2).

Oil Pan Disassemble Engine Lubrication Oil Sump/Pan

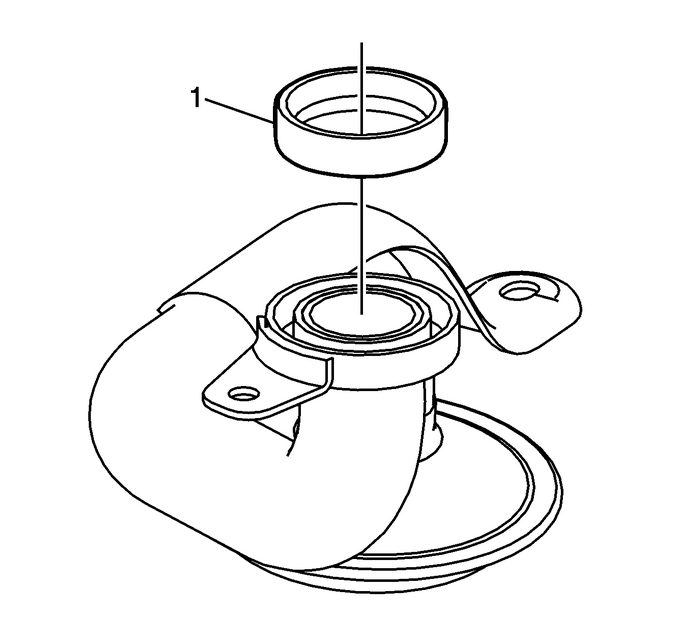

Remove the oil suction pipe seal-(1).

Oil Pan Disassemble Engine Lubrication Oil Sump/Pan

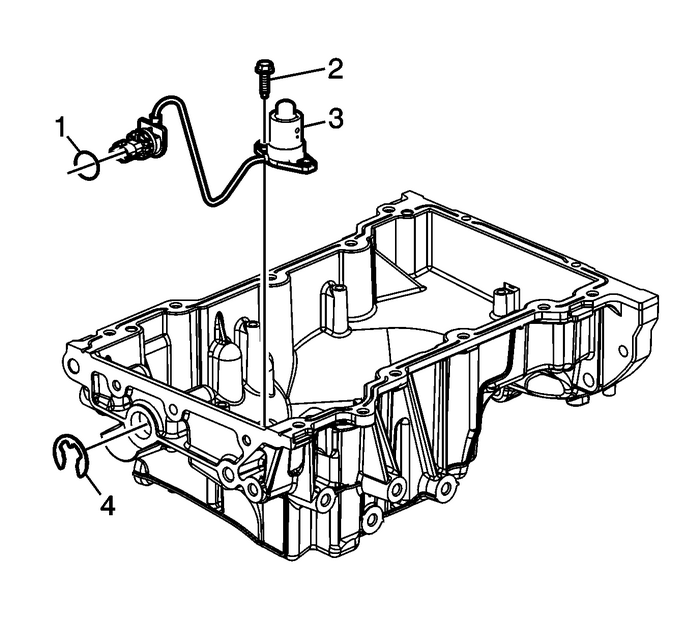

Remove the engine oil level switch clip-(4)Remove the engine oil level switch bolt-(2).Remove the engine oil level switch-(3).Remove the engine oil level switch seal-(1).
