Chevrolet Equinox Service Manual: Oil Pan Cleaning and Inspection Engine Lubrication Oil Sump/Pan

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Pan Cleaning and Inspection Engine Lubrication Oil Sump/Pan

Special Tools

EN 28410 Gasket Remover

For equivalent regional tools, refer toSpecial Tools

Cleaning ProcedureRemove any old thread sealant, gasket material or sealant using EN 28410 remover.Clean the oil pan and oil pan components in solvent.Clean out debris from the bolt holes.

Warning:Refer toSafety Glasses Warning.

Dry the oil pan and oil pan components with compressed air.Inspection Procedure

Oil Pan Cleaning and Inspection Engine Lubrication Oil Sump/Pan

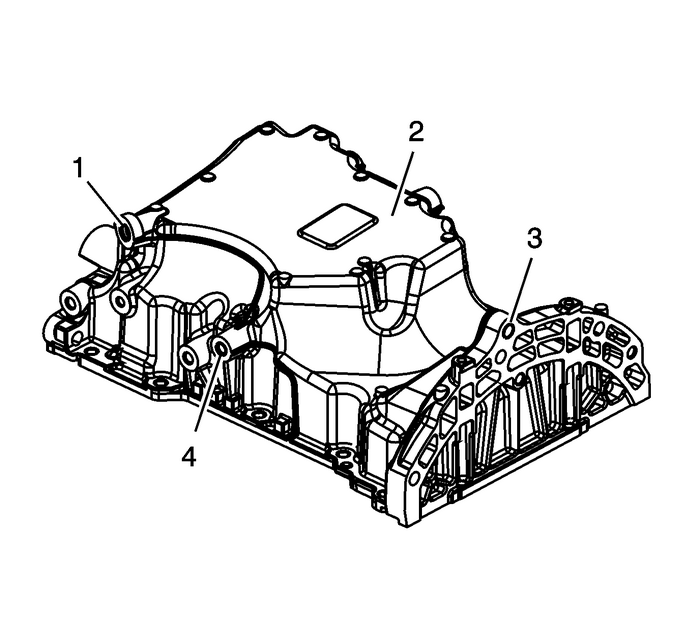

Inspect the exterior of the oil pan for the following conditions:Dents or damage to the exterior-(2)Damage to the drain plug or drain plug hole-(1)Damage to the brace mounting bosses-(4)Damage to the mounting bosses-(3)

Oil Pan Cleaning and Inspection Engine Lubrication Oil Sump/Pan

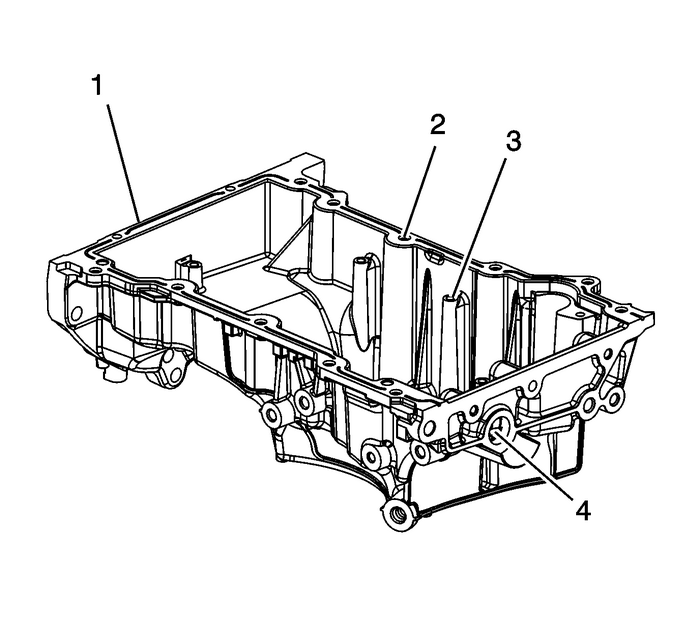

Inspect the interior of the oil pan for the following conditions:Gouges or damage to the oil pan sealing surfaces-(1)Damage to the oil pan scraper mounting holes-(2)Damage to the bolt holes-(3)Damage to the engine oil level switch hole-(4)Repair or replace the oil pan and/or oil pan components as necessary.
