Removal Procedure

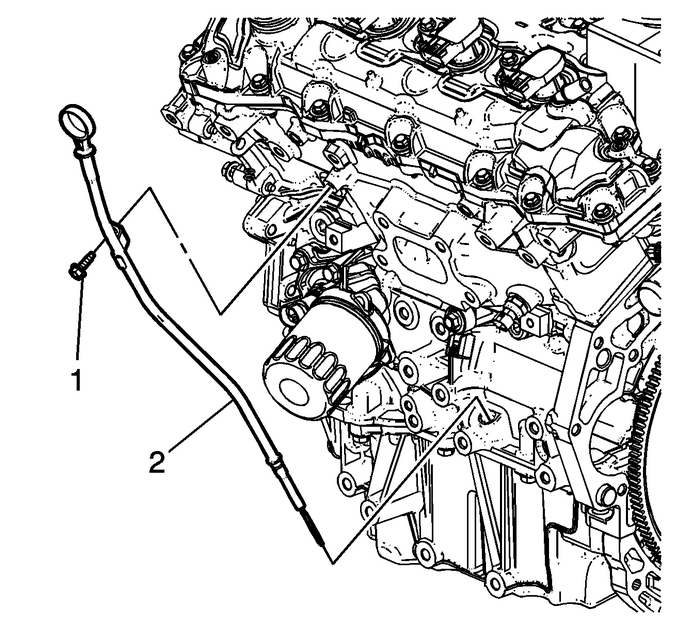

Remove the intake manifold cover. Refer toIntake Manifold Cover ReplacementRemove the oil level indicator tube bracketbolt-(1).Remove the oil level indicator and tube-(2) bysliding the tube out from the lower crankcase hole.
Remove and discard the O-ring from the oil level indicatortube if damaged.Installation Procedure

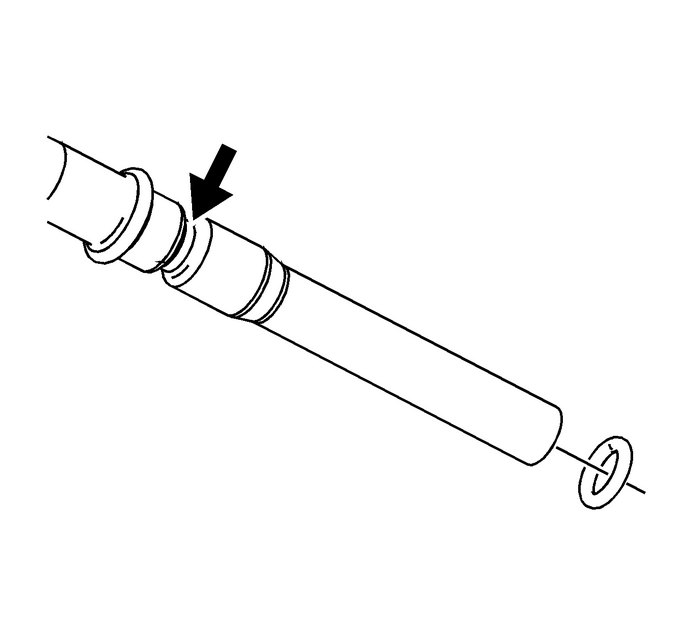

Install a NEW O-ring on the oil level indicator tube.
Install the oil level indicator and tube-(2) bysliding the tube down through the lower crankcase hole.
Caution:Refer toFastener Caution.
Install the oil level indicator tube bracketbolt-(1) and tighten to10-Y(89-lb-in).Install the intake manifold cover. Refer toIntake Manifold Cover Replacement.Radio Control Assembly Replacement Entertainment Audio
