Oil Filter Adapter Disassemble Engine Lubrication Oil Filter

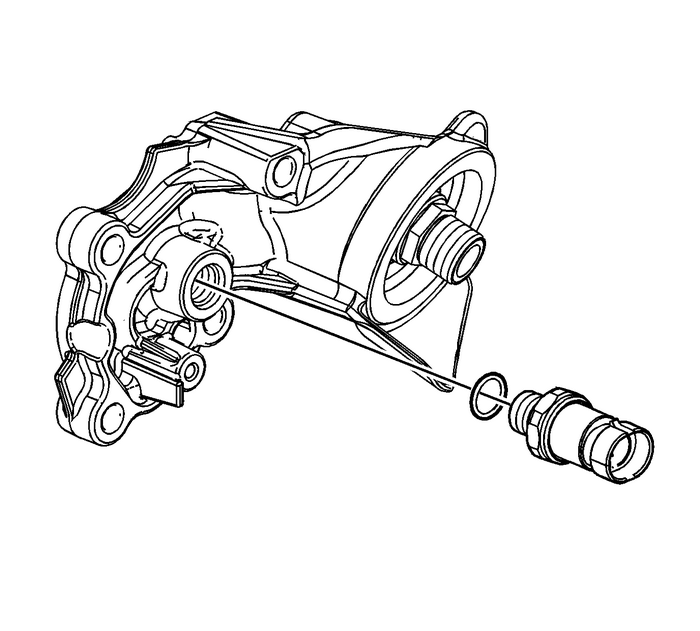

Remove the oil pressure sender.

Oil Filter Adapter Disassemble Engine Lubrication Oil Filter

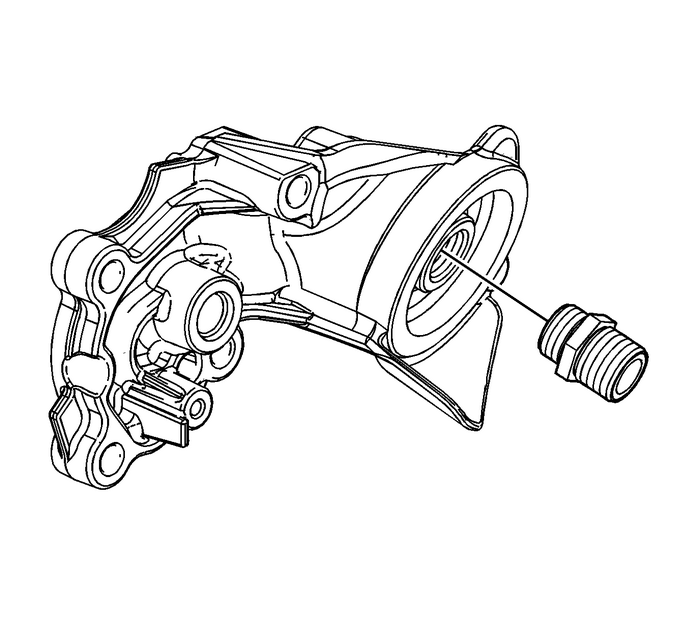

Remove the oil filter fitting.
