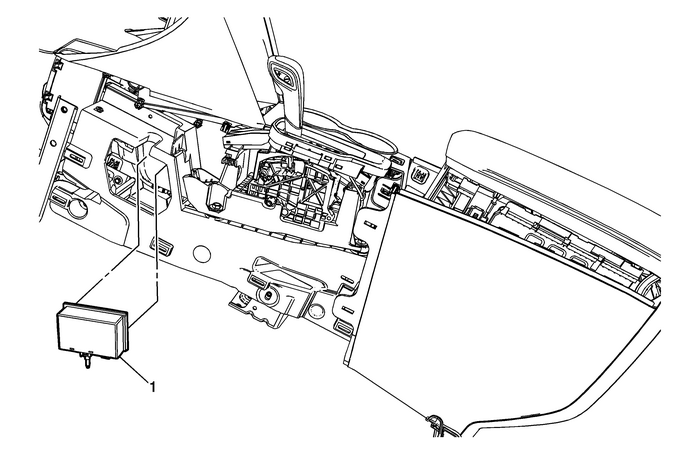

Multimedia Player Interface Module Replacement

Callout

Component Name

Preliminary Procedure

Remove the left front floor lower console side finish cover.Refer toFront Floor Lower Console Side Finish Cover Replacement - Left Side

Multimedia Player Interface Module

ProcedureSlide the module upwards after disengaging retainingclips.Disconnect the electrical connectors.
