Chevrolet Equinox Owners Manual: Mirror Adjustment

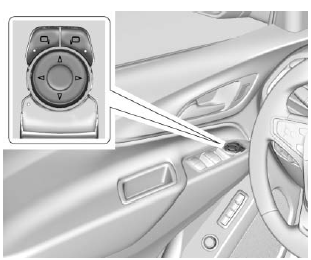

Exterior
To adjust the mirrors:
- Press
or
to choose the
driver or passenger mirror.
Press the arrows on the control pad to move each mirror in the desired direction.See Power Mirrors.
Interior
Adjustment
Adjust the rearview mirror to clearly view the area behind the vehicle.
Manual Rearview Mirror
If equipped, push the tab forward for daytime use and pull it rearward for nighttime use to avoid glare of the headlamps from behind. See Manual Rearview Mirror.
Automatic Dimming Rearview Mirror
If equipped, the mirror will automatically reduce the glare of the headlamps from behind. The dimming feature comes on when the vehicle is started. See Automatic Dimming Rearview Mirror.
