Manual Shift Shaft Seal Removal Automatic Transmission Unit

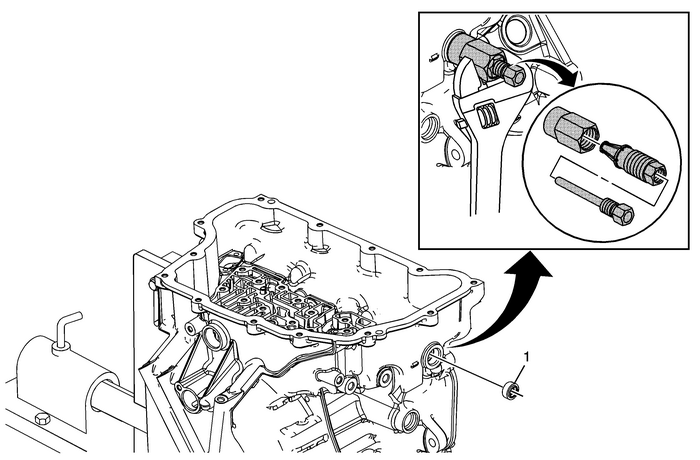

Manual Shift Shaft Seal Removal

Callout

Component Name

1

Manual Shift Shaft Seal

Note:Use the DT-45201 seal remover to remove the seal to prevent damage to the case surface.

Special Tools

DT-45201 Seal Remover

For equivalent regional tools, refer toSpecial Tools.
