Chevrolet Equinox Service Manual: Manual Shift Shaft Seal Installation Automatic Transmission Unit

Manual Shift Shaft and Seal Replacement Automatic Transmission Unit

Manual Shift Shaft and Seal ReplacementCalloutComponent NamePreliminary ProceduresRemove the battery tray. Refer toBattery Tray Replacement.Remove the manual shaft and position switch assembly. Refert ...

Manual Shift Shaft Seal Removal Automatic Transmission Unit

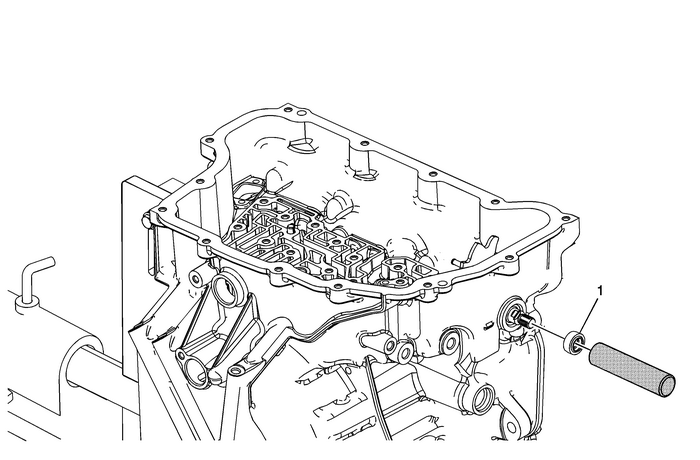

Manual Shift Shaft Seal RemovalCalloutComponent Name1Manual Shift Shaft SealNote:Use the DT-45201 seal remover to remove the seal to prevent damage to the case surface.Special Tools DT-45201 Seal Remo ...
