Chevrolet Equinox Service Manual: Manual Shift Shaft and Seal Replacement Automatic Transmission Unit
Special ToolsJ 45201 Cooler Line Seal RemoverJ-46626 Seal InstallerRemoval ProcedureRemove the battery tray. Refer toBattery Tray Replacement.Remove the manual shaft and position switch assembly. Refer toManual Shift Detent Lever with Shaft Position Switch Assembly Replacement.

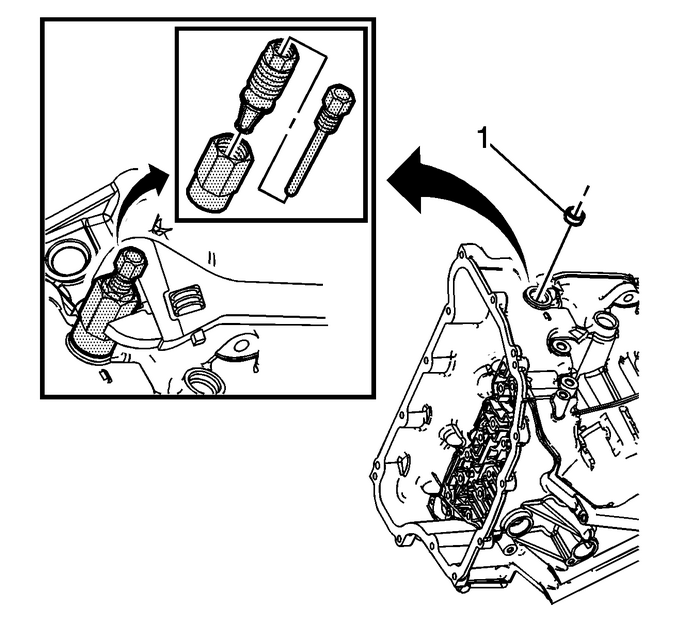

Remove the manual shaft seal-(1) using J 45201 Cooler Line Seal Remover.Installation ProcedureInstall the manual shaft and position switch assembly. Refer toManual Shift Detent Lever with Shaft Position Switch Assembly Replacement.

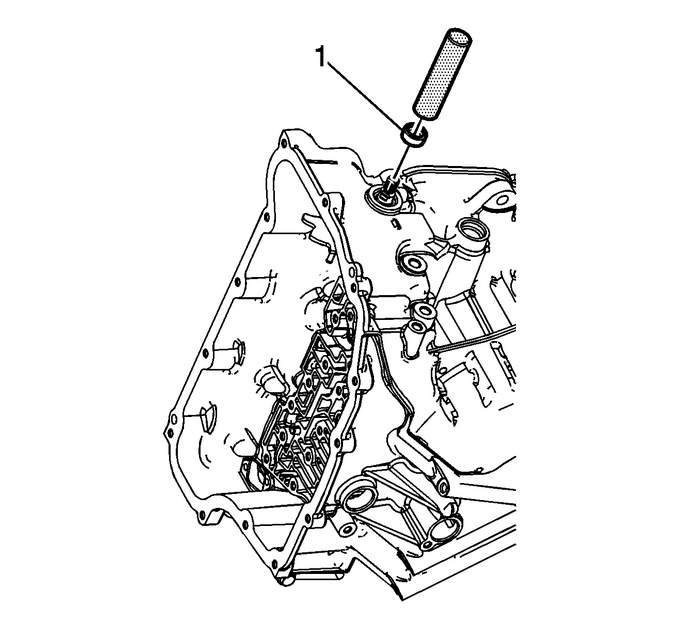

Install the manual shaft seal-(1) using J-46626 Seal Installer.Install the battery tray. Refer toBattery Tray Replacement.
