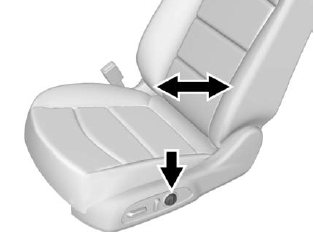

Lumbar Adjustment

If equipped, press and hold the front or rear of the control to increase or decrease lumbar support.
