Low and Reverse Clutch Plate Removal Automatic Transmission Unit Automatic Clutches

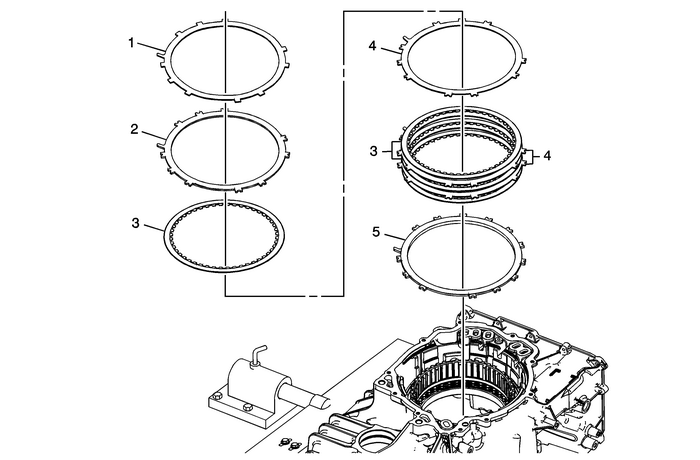

Low and Reverse Clutch Plate Removal

Callout

Component Name

1

Low and Reverse Clutch Cushion (Waved) Spring

2

Low and Reverse Clutch Apply Plate

3

Low and Reverse Clutch (w/Friction Material) Plate Assembly(Qty: 4)

4

Low and Reverse Clutch Plate (Qty: 3)

5

Low and Reverse Clutch Backing Plate
