Lift Plate and Holding Fixture Removal Automatic Transmission Unit

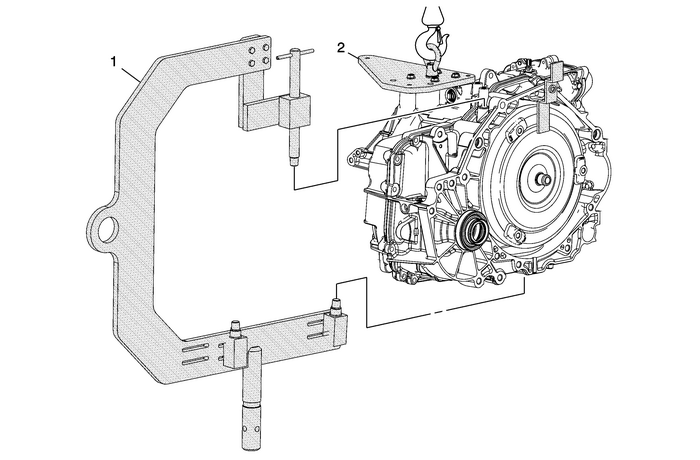

Lift Plate and Holding Fixture Removal

Callout

Component Name

1

DT-46625 Transmission Holding Fixture

For equivalent regional tools, refer toSpecial Tools.

Note:Raise the transmission in order to remove the holding fixture.

2

DT-47811-S1 Transmission Lift Plate

For equivalent regional tools, refer toSpecial Tools.

Note:Lower the transmission assembly onto the transmission jack in order to remove thelift plate.
