Intake Manifold Removal Intake and Forced Induction Intake Manifold

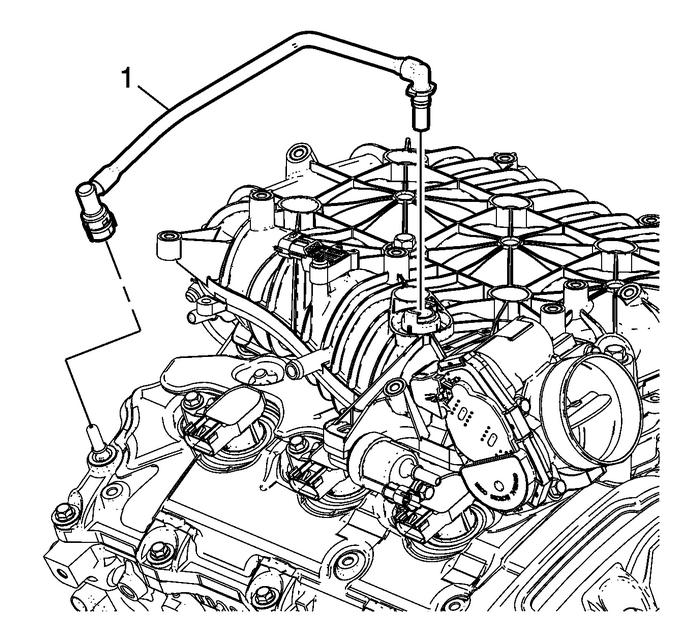

Disconnect and remove the positive crankcaseventilation-(PCV) tube-(1) from the intakemanifold and right camshaft cover.

Intake Manifold Removal Intake and Forced Induction Intake Manifold

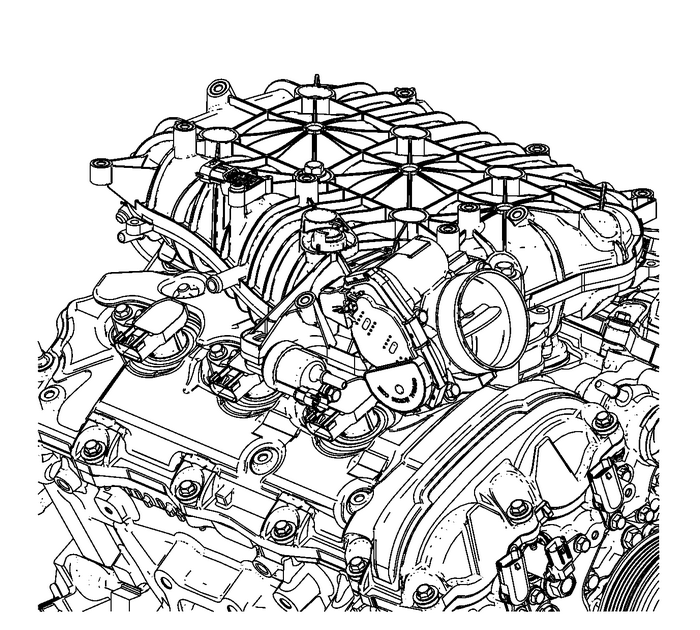

Remove the evaporative-(EVAP) hose from the intakemanifold and EVAP solenoid.

Intake Manifold Removal Intake and Forced Induction Intake Manifold

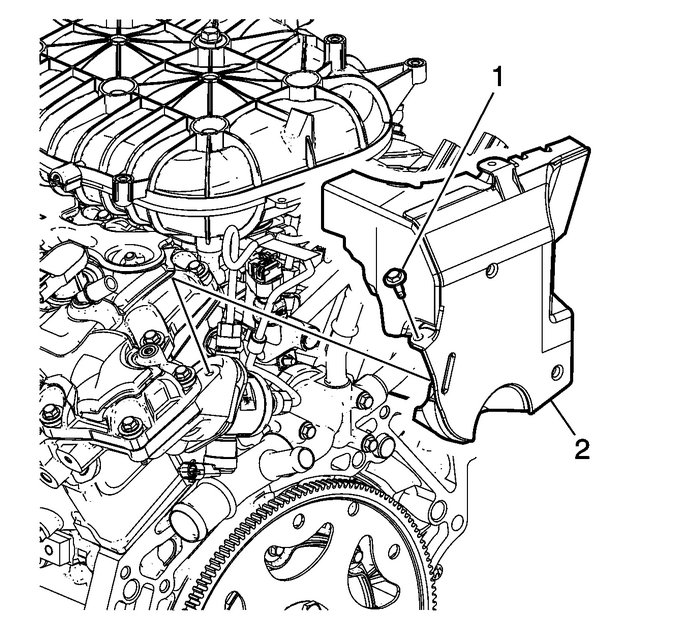

Remove the fuel pump cover bolt-(1).Remove the fuel pump cover-(2).

Intake Manifold Removal Intake and Forced Induction Intake Manifold

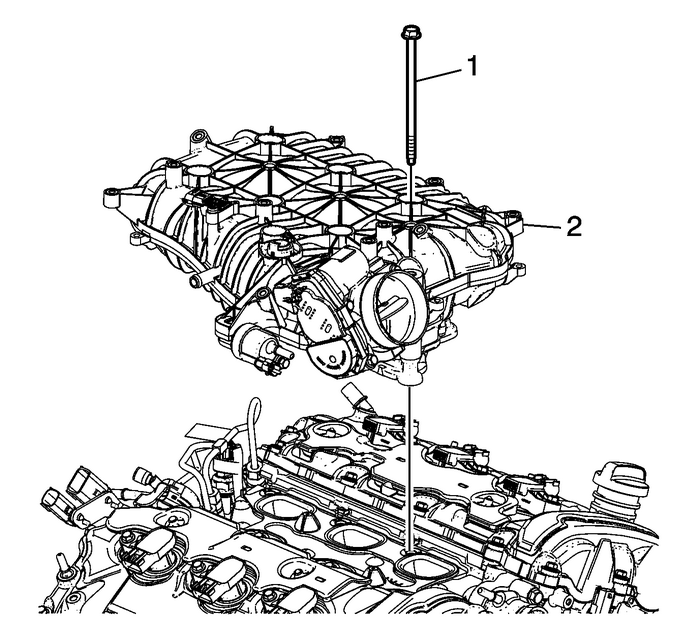

Remove the intake manifold bolts-(1).Remove the intake manifold assembly-(2).

Intake Manifold Removal Intake and Forced Induction Intake Manifold

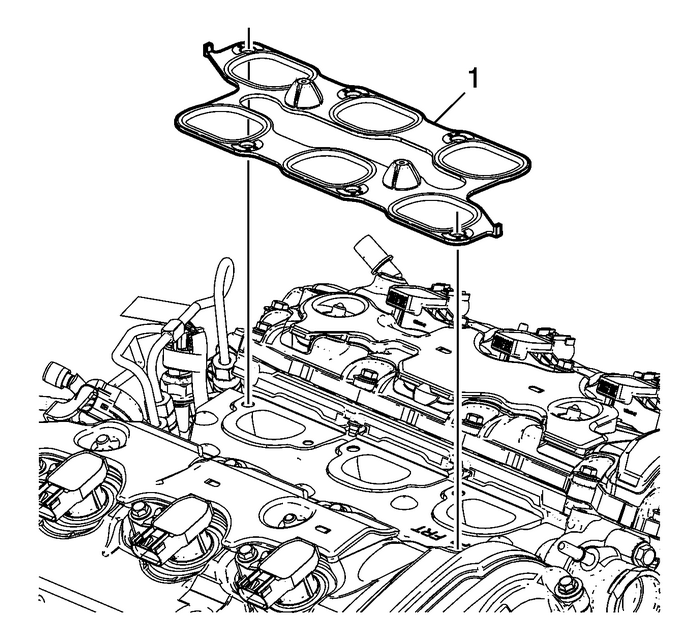

Remove and discard the intake manifoldgasket-(1).
