Chevrolet Equinox Service Manual: Intake Manifold Installation Intake and Forced Induction Intake Manifold

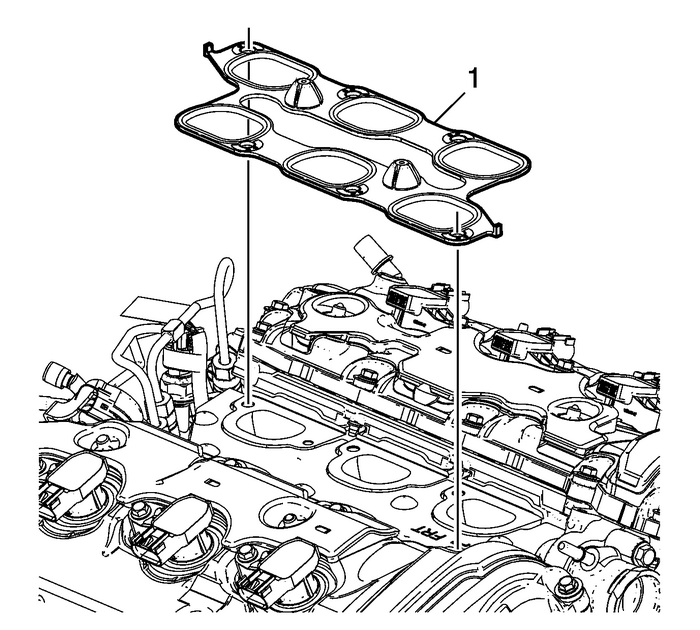

Install the NEW intake manifold gasket-(1).

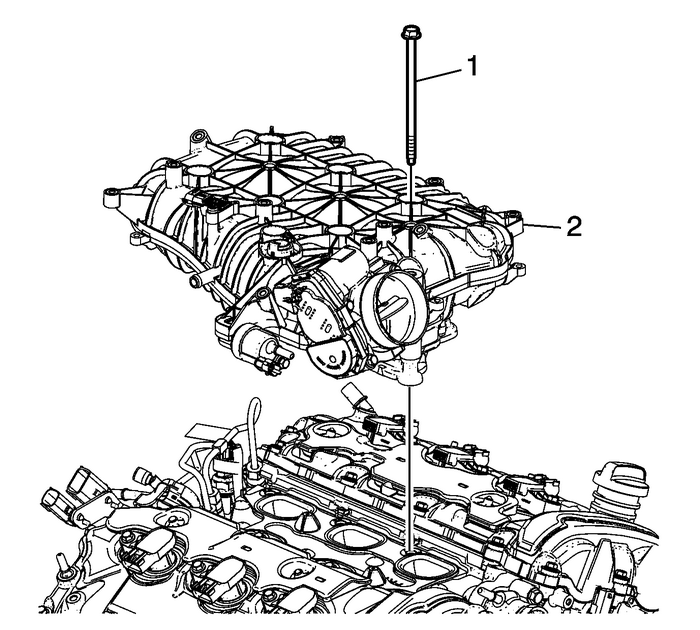

Install the intake manifold assembly-(2).Install the intake manifold bolts-(1).
Caution:Refer toFastener Caution.

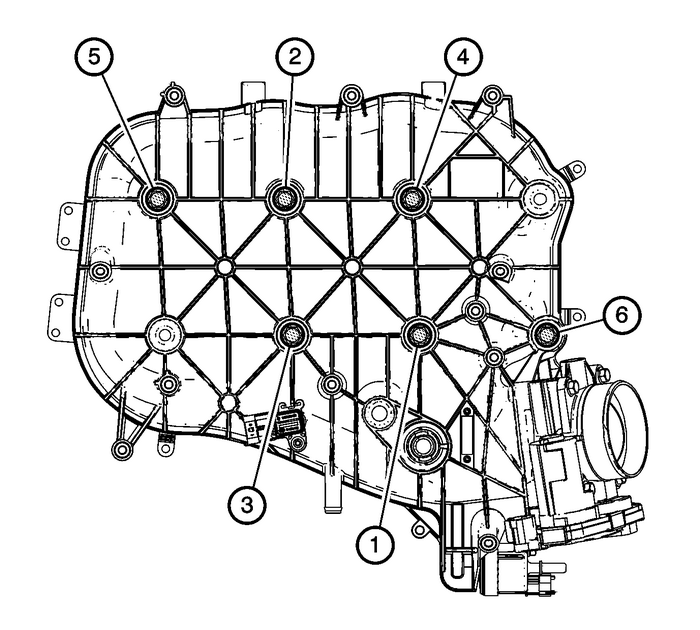

Tighten the intake manifold bolts in the sequenceshown.Tighten the intake manifold bolts in sequence to25-Y(18-lb-ft).Tighten the intake manifold bolts a second pass in sequenceto25-Y(18-lb-ft).

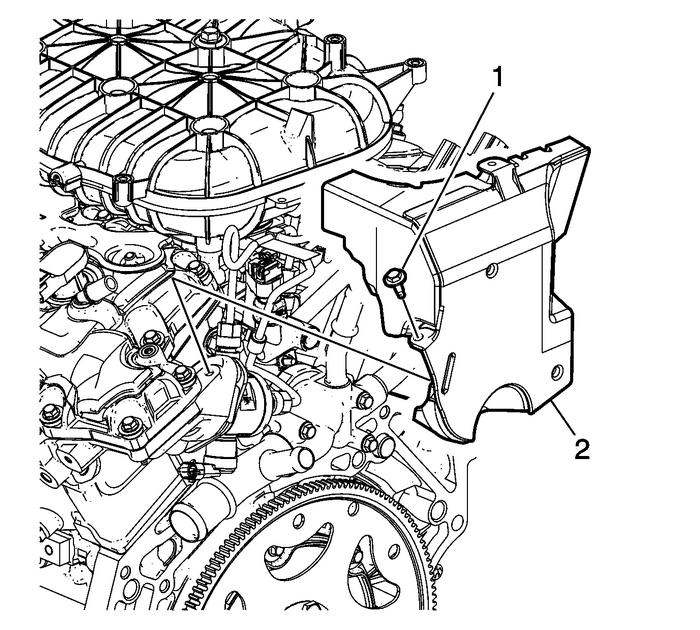

Install the fuel pump cover-(2).Install the fuel pump cover bolt-(1) and tightento10-Y(89-lb-in).

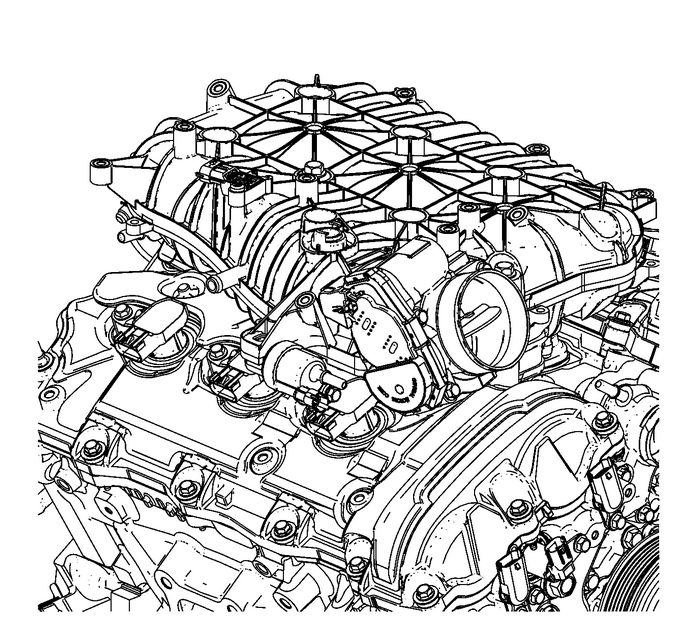

Connect the evaporative-(EVAP) hose to the upperintake manifold and EVAP solenoid.

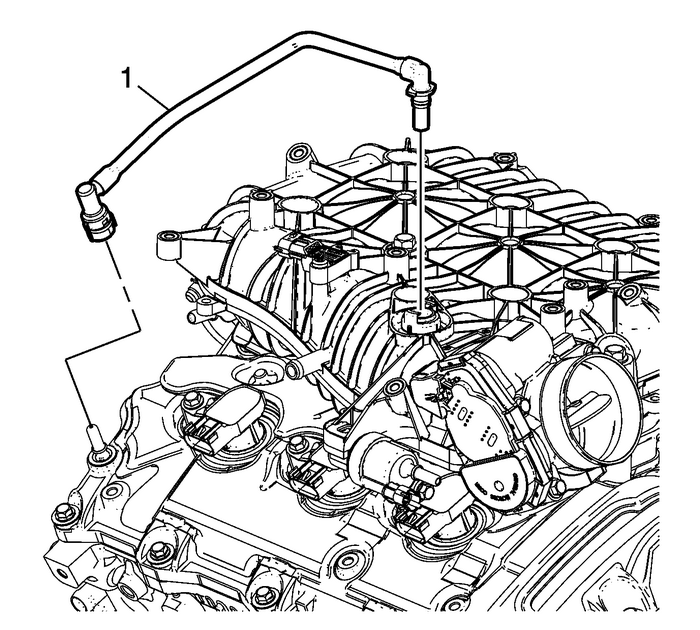

Connect the positive crankcase ventilation-(PCV)tube assembly-(1) to the upper intake manifold and theright camshaft cover.
