Chevrolet Equinox Service Manual: Intake Manifold Disassemble Intake and Forced Induction Intake Manifold

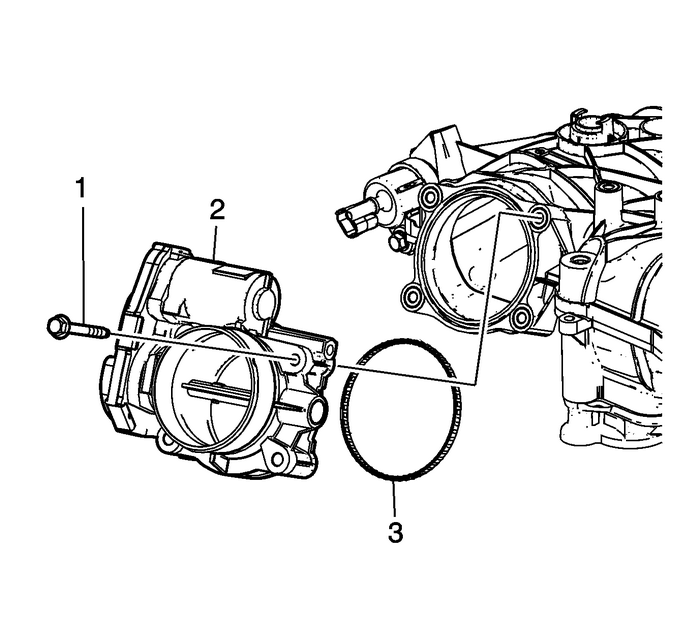

Remove the throttle body bolts-(1).Remove the throttle body-(2).Remove and discard the throttle bodyseal-(3).

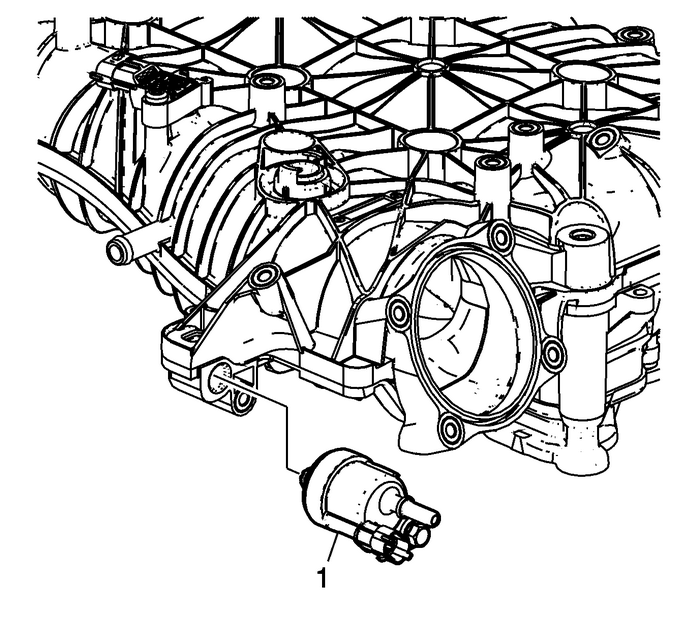

Loosen the evaporative-(EVAP) solenoidbolt.Remove the EVAP solenoid-(1).

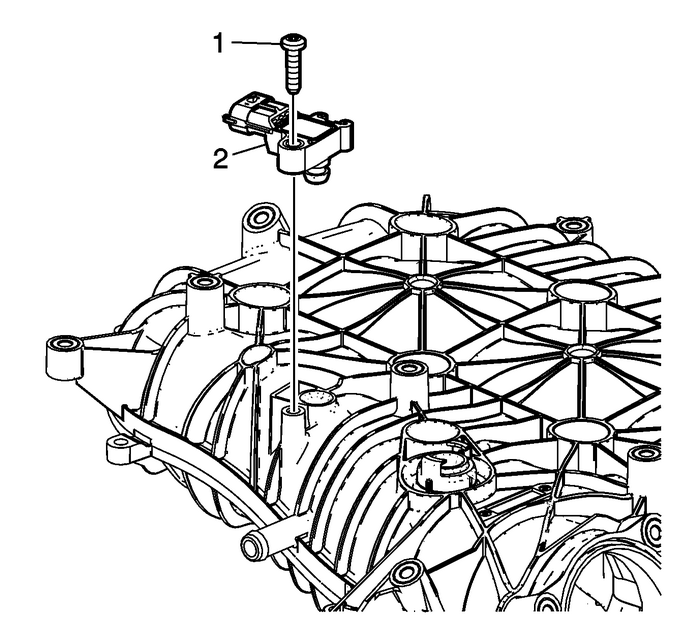

Remove the manifold absolute pressure-(MAP) sensorbolt-(1).Remove the MAP sensor-(2).

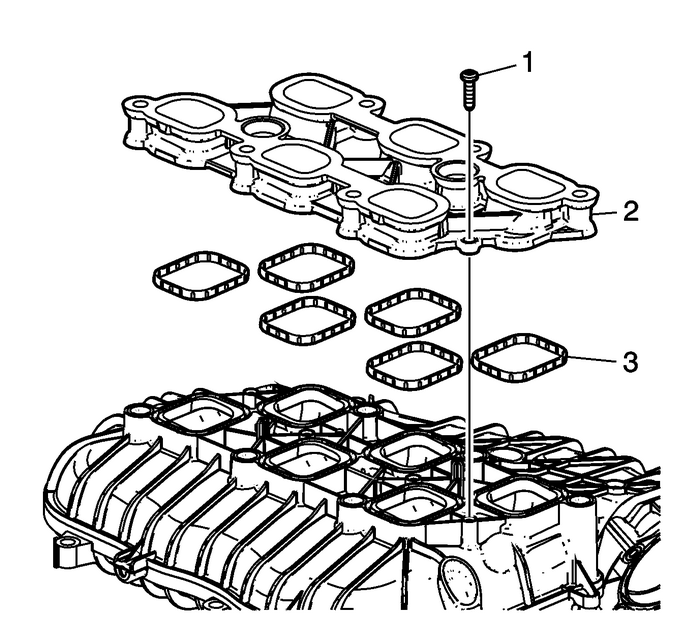

Remove the lower intake manifold bolts-1) andlower intake manifold-(2).Remove and discard the lower intake manifoldgaskets-(3).

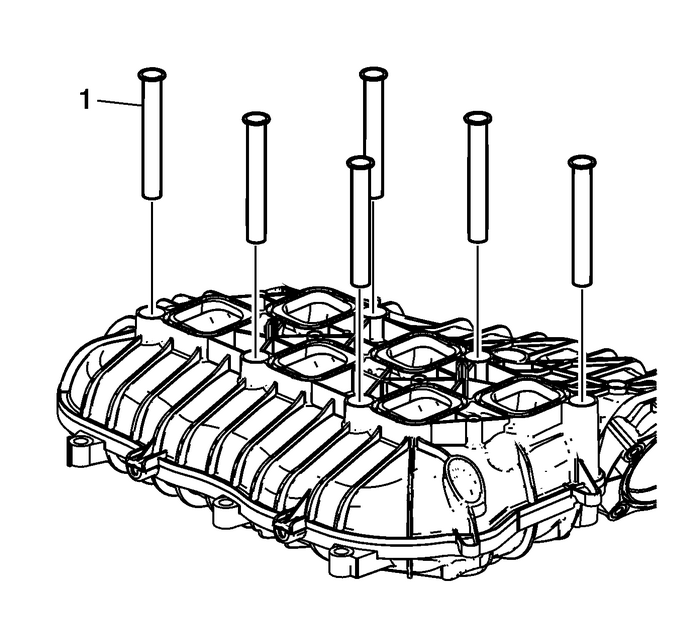

Remove and discard the plastic compressionlimiters-(1).
Engine Coolant Thermostat Housing Removal Engine Cooling Thermostat
Remove the thermostat housing bolts.Remove the thermostat housing.Remove and discard the thermostat housing gasket. ...
Cylinder Head Removal - Left Side Engine Block Cylinder Head
Remove the two-front M8 left cylinder head bolts-(1) and discard.Remove the left cylinder head bolts-(2) and discard.Remove the left cylinder head-(3).Remove and discard the left cylinder head gasket- ...
