Intake Manifold Cover Replacement Intake and Forced Induction Intake Manifold

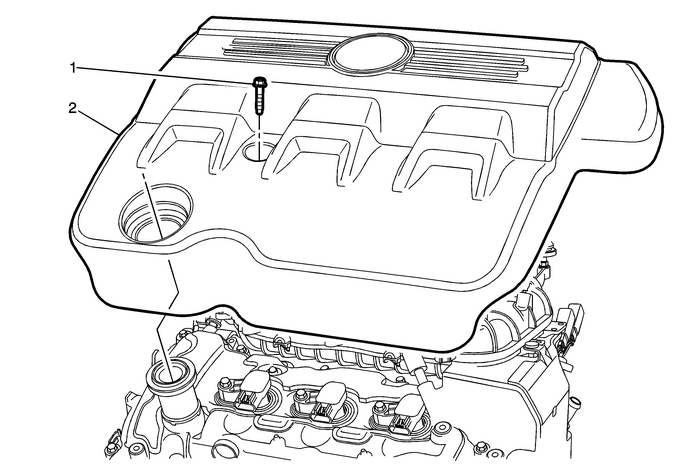

Intake Manifold Cover Replacement

Callout

Component Name

Intake Manifold Cover Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

Intake Manifold Cover

ProcedureRemove the oil cap before removing the intake manifoldcover.Transfer components as necessary.
