Intake Manifold Assemble Intake and Forced Induction Intake Manifold

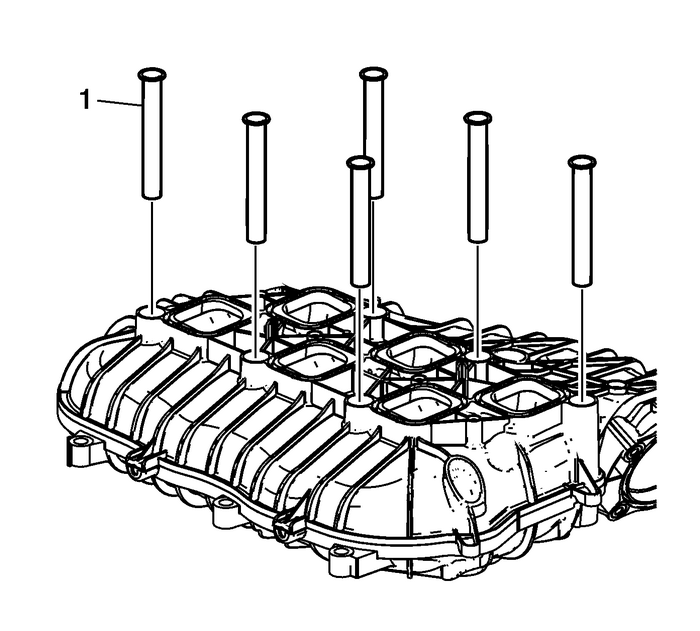

Install the NEW plastic compressionlimiters-(1).

Intake Manifold Assemble Intake and Forced Induction Intake Manifold

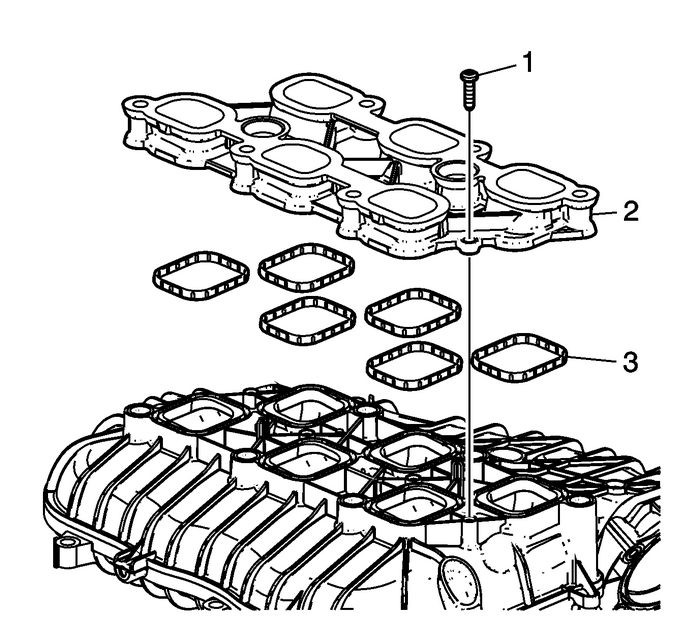

Install the NEW lower intake manifoldgaskets-(3).Install the lower intake manifold-(2) andbolts-(1).

Caution:Refer toFastener Caution.

Tighten the lower intake manifold bolts-(1) to7-Y(62-lb-in).

Intake Manifold Assemble Intake and Forced Induction Intake Manifold

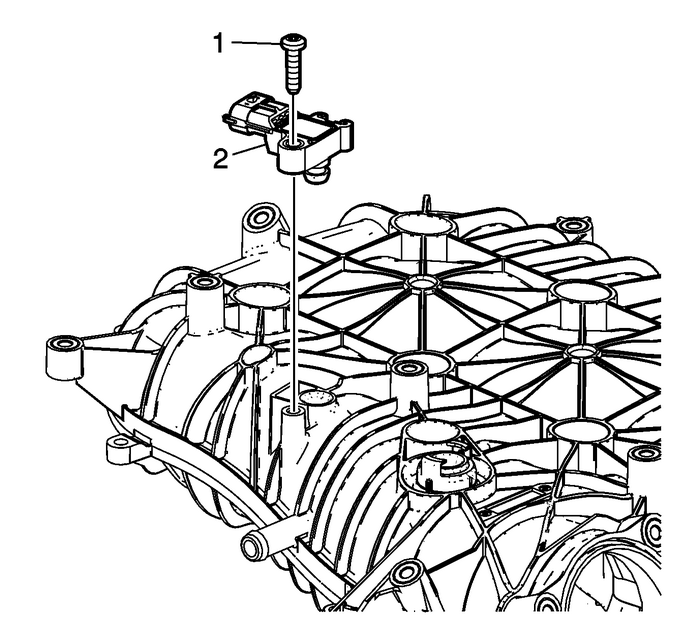

Install the MAP sensor-(2).Install the MAP sensor bolt-(1) and tighten to4-Y(35-lb-in).

Intake Manifold Assemble Intake and Forced Induction Intake Manifold

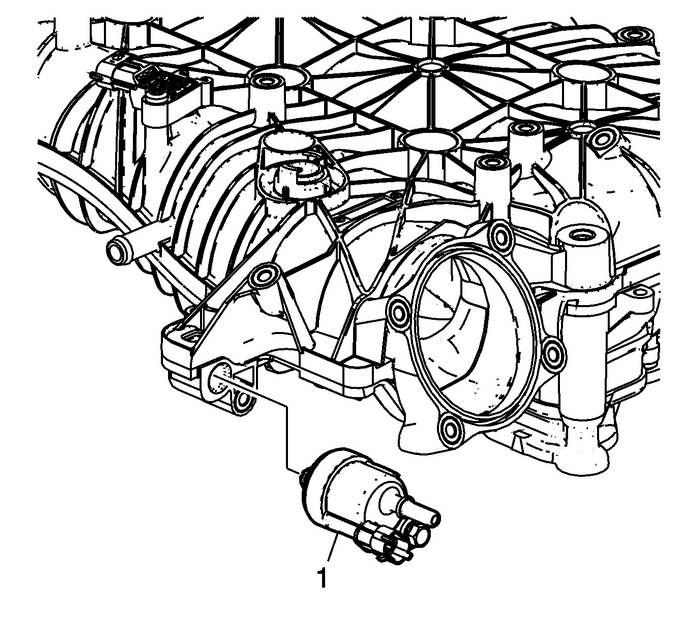

Install the EVAP solenoid-(1).Tighten the EVAP solenoid bolt to10-Y(89-lb-in).

Intake Manifold Assemble Intake and Forced Induction Intake Manifold

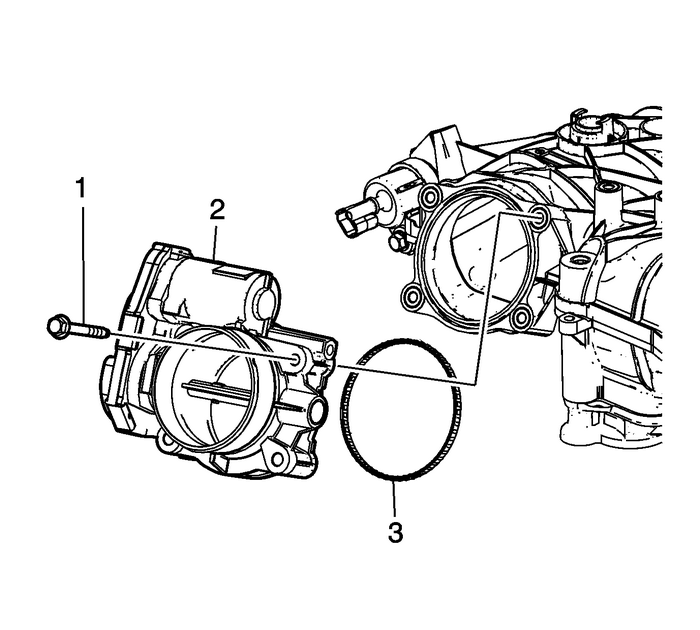

Install the NEW throttle body seal-(3).Install the throttle body-(2).Install the throttle body bolts-(1) and tighten to10-Y (89 lbin).

Intake Manifold Installation Intake and Forced Induction Intake Manifold
Install the NEW intake manifold gasket-(1).Install the intake manifold assembly-(2).Install the intake manifold bolts-(1).Caution:Refer toFastener Caution.Tighten the intake manifold bolts in the sequ ...

Secondary Air Injection Check Valve Installation - Bank 1 Emissions Air Injection
Install the NEW secondary air injection (SAI) check valvegasket-(3).Install the SAI check valve-(2).Caution:Refer toFastener Caution.Install the SAI check valve bolts-(1) and tightento25-Y(18-lb-ft). ...
