Instrument Panel Wiring Harness Junction Block Replacement Junction Box

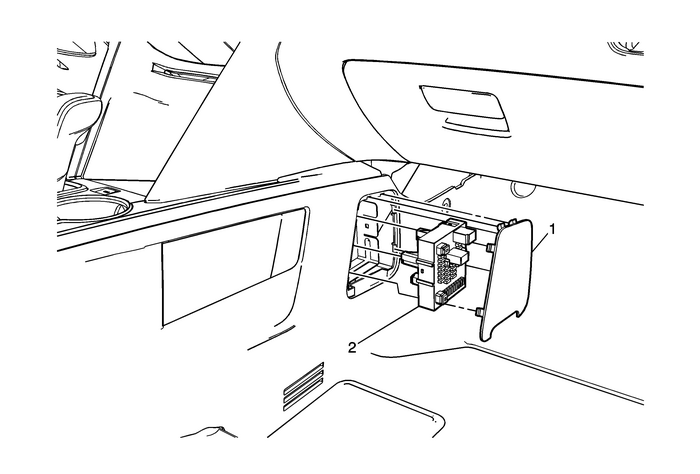

Instrument Panel Wiring Harness Junction Block Replacement

Callout

Component Name

Preliminary Procedure

Disconnect the battery. Refer toBattery Negative Cable Disconnection and Connection.

Front Floor Lower Console Side Finish Cover

Instrument Panel Wiring Harness Junction Block

ProcedureExtract terminals from block housing.For replacement of terminals, Refer toElectrical Center Identification Views.

Accessory Wiring Junction Block Replacement Junction Box

Accessory Wiring Junction Block ReplacementCalloutComponent NamePreliminary ProceduresDisconnect the battery. Refer toBattery Negative Cable Disconnection and Connection.1Accessory Wiring Junction Blo ...

Relay Replacement (Attached to Wire Harness) Relays

Removal ProcedureLocate the relay. Refer to theMaster Electrical Component Listto locate the relay in the vehicle.Remove any fasteners which hold the relay in place.Remove any connector position assur ...
