Instrument Panel Airbag Arming Status Display Replacement Secondary Air Bag Modules

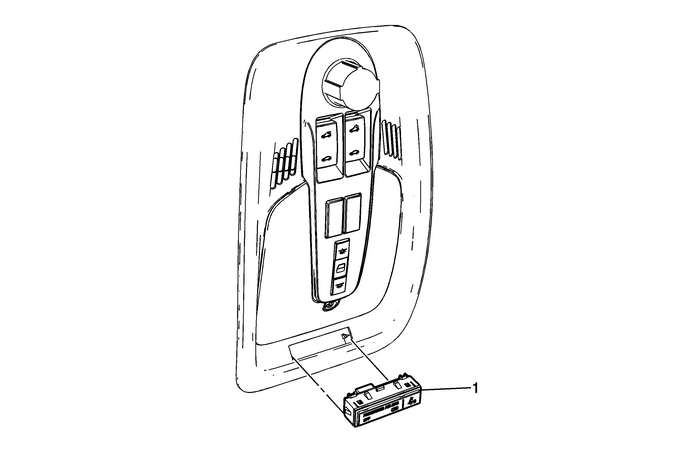

Instrument Panel Airbag Arming Status Display Replacement

Callout

Component Name

Preliminary Procedure

Remove the roof console. Refer toRoof Console Replacement.

1

Inflatable Restraint Instrument Panel Module Indicator
