Chevrolet Equinox Owners Manual: Instrument Panel

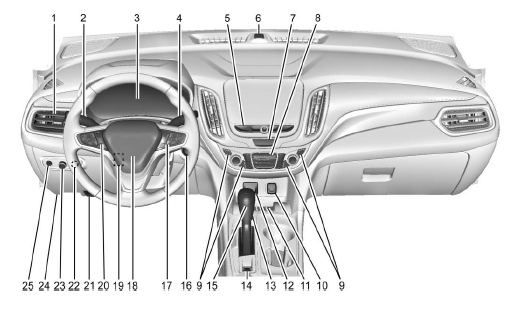

Instrument Panel

  1. Air Vents.
  2. Turn Signal Lever. See Turn and Lane-Change Signals.
    IntelliBeam System Button (If Equipped). See Exterior Lamp Controls.
  3.  Instrument Cluster.
    Driver Information Center (DIC) Display. See Driver Information Center (DIC).
  4.  Windshield Wiper/Washer.
  5.  Infotainment.
  6.  Light Sensor. See Automatic Headlamp System.
  7.  Hazard Warning Flashers.
  8.  Climate Control Systems (If Equipped).
    Dual Automatic Climate Control System (If Equipped).
  9.  Heated and Ventilated Front Seats (If Equipped).
  10.  Power Outlets.
  11.  Wireless Charging (If Equipped).
  12.  USB Port.
    Auxiliary Input Jack. See Auxiliary Devices.
  13.  Assistance Systems for Parking or Backing (If Equipped).
    All-Wheel Drive (If Equipped).
    Tow/Haul Mode
  14.  Electric Parking Brake.
  15.  Shift Lever. See Automatic Transmission.
  16.  ENGINE START/STOP Button.

    See Ignition Positions.

  17.  Steering Wheel Controls.
    Traction Control/Electronic Stability Control.
  18.  Horn.
  19.  Steering Wheel Adjustment (Out of View).
  20.  Cruise Control.

    Heated Steering Wheel (If Equipped).
    Forward Collision Alert (FCA) System (If Equipped).
    Lane Keep Assist (LKA) (If Equipped).

  21.  Hood Release. See Hood.
  22.  Fog Lamps (If Equipped).
  23.  Exterior Lamp Controls.
  24.  Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp.
  25.  Instrument Panel Illumination Control.
In Brief
...

Initial Drive Information
This section provides a brief overview about some of the important features that may or may not be on your specific vehicle. For more detailed information, refer to each of the features which c ...
