Input Shaft and Rear Output Drive Shaft Cleaning and Inspection Automatic Transmission Unit

Input Shaft and Rear Output Drive Shaft Cleaning and Inspection

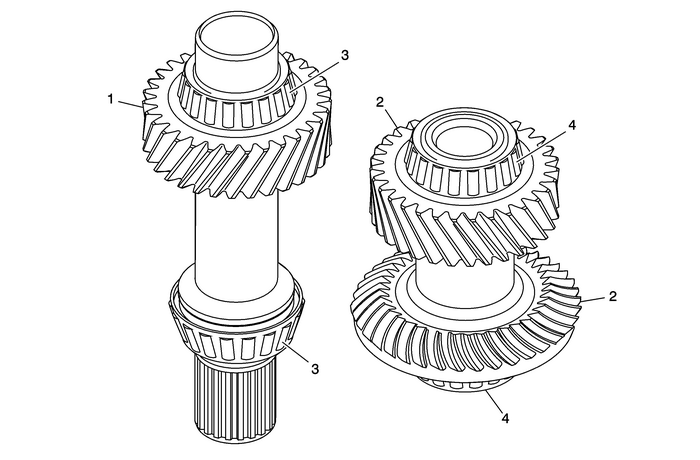

Callout

Component Name

Preliminary ProceduresClean all components in cleaning solvent and air dry.The transfer case internal components are not to be serviced. If internal componentsother than seals are damaged, the transfer case must be replaced.

1

Transfer Case Input Shaft Gear

Note:Inspect for pitting, excessive wear, or damage.

2

Transfer Case Rear Output Drive Shaft Gear

Note:Inspect for pitting, excessive wear, or damage.

3

Transfer Case Input Shaft Bearing Assembly

Note:Inspect bearings for roughness, spalling, or pitting.

4

Transfer Case Rear Output Drive Shaft Bearing Assembly

Note:Inspect bearings for roughness, spalling, or pitting.
