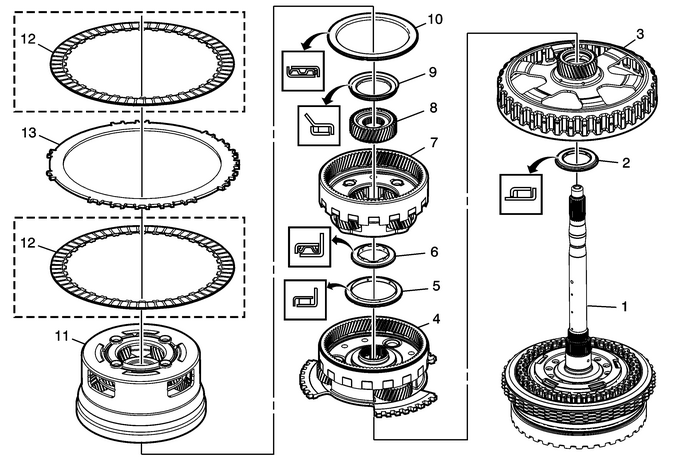

Chevrolet Equinox Service Manual: Input, Reaction, and Output Carrier Assemble (Gen 2) Automatic Transmission Unit
1 | 3–5 Reverse and 4–5–6 Clutch Housing Assembly |
2 | Reaction Carrier Sun Gear Thrust Bearing |
3 | Reaction Carrier Sun Gear Assembly |
4 | Reaction Carrier Assembly Note:Starting in 2012, all 6T30/40/45/50 models have 3-pinion reaction carriers. The 3-pinionreaction carriers are back serviceable for all models. Original Configuration:The 6T30 and 6T40 had 3-pinions.The 6T45 and 6T50 had 4-pinions. |
5 | Input Carrier Thrust Bearing Assembly |
6 | Input Sun Gear Thrust Bearing Assembly |
7 | Input Carrier Assembly Note: The 6T30 and 6T40 have 4-pinions.The 6T45 and 6T50 have 5-pinions. |
8 | Input Sun Gear |
9 | Input Sun Gear Thrust Bearing Assembly |
10 | Output Carrier Thrust Bearing Assembly |
11 | Output Carrier Assembly Note: The 6T30 and 6T40 have 4-pinions.The 6T45 and 6T50 have 5-pinions. |
12 | 2–6 Clutch Plate Assembly-(Qty:-2)---Model Dependent Note: Begin with the clutch plate assembly and alternate with the clutch plate.The number of grooves in the clutch plate friction material varies depending on model. |
13 | 2–6 Clutch Plate-(Qty:-1) Note:Only install one 2–6-Clutch Plate at this time. The remaining clutch plate is installedinto the case. |
