Input and Output Speed Sensor Removal Automatic Transmission Unit

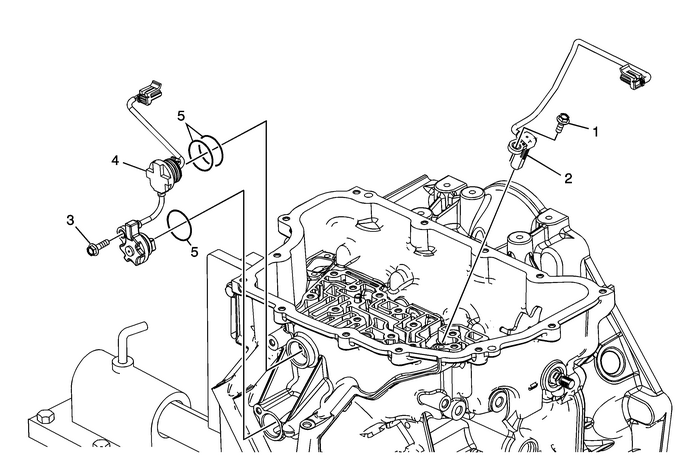

Input and Output Speed Sensor Removal

Callout

Component Name

1	A/Trans Output Speed Sensor Bolt-M6-x-18-(Qty:-1)
2	A/Trans Output Speed Sensor Assembly
3	Input Speed Sensor Bolt M6-x-23-(Qty:-1)
4	Input Speed Sensor Assembly Note:Compress the locking tabs on the plug to release it from the case and to avoid damagingthe retainers.
5	Input Speed Sensor Assembly Seals-(Qty:-3) Note:Discard the seals. They are not reusable.
