Input and Output Speed Sensor Installation Automatic Transmission Unit

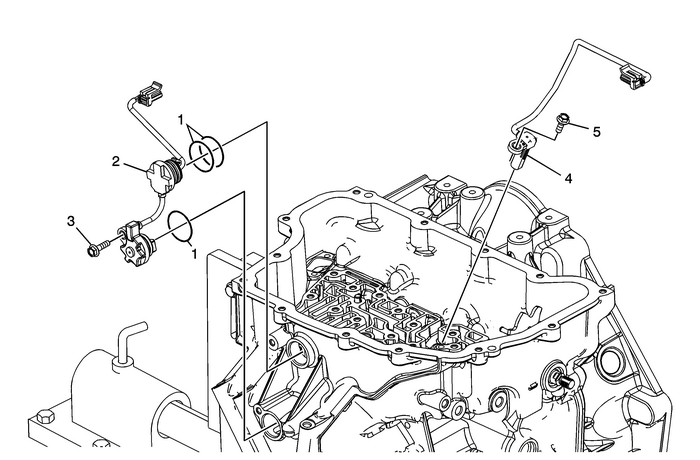

Input and Output Speed Sensor Installation

Callout

Component Name

1	Input Speed Sensor Assembly Seals
2	Input Speed Sensor Assembly
3	Input Speed SensorBolt-M6-x-23-(Qty:-1) Caution:Refer toFastener Caution. Tighten 9-Y(80-lb-in)
4	A/Trans Output Speed Sensor Assembly
5	A/Trans Output Speed SensorBolt-M6-x-18-(Qty:-1) Tighten 9-Y(80-lb-in)

Special Tools Automatic Transmission Unit

IllustrationTool Number/DescriptionDT-48074Input and Output Shaft Seal InstallerDT-48075Output Shaft Seal InstallerDT-48077Output Shaft Slinger InstallerDT-48078Inner Drive Shaft Seal InstallerDT-4809 ...

Input and Output Speed Sensor Removal Automatic Transmission Unit

Input and Output Speed Sensor RemovalCalloutComponent Name1A/Trans Output Speed Sensor Bolt-M6-x-18-(Qty:-1)2A/Trans Output Speed Sensor Assembly3Input Speed Sensor Bolt M6-x-23-(Qty:-1)4Input Speed S ...
