Ignition Lock Cylinder Replacement Ignition/Push Start and Steering Lock

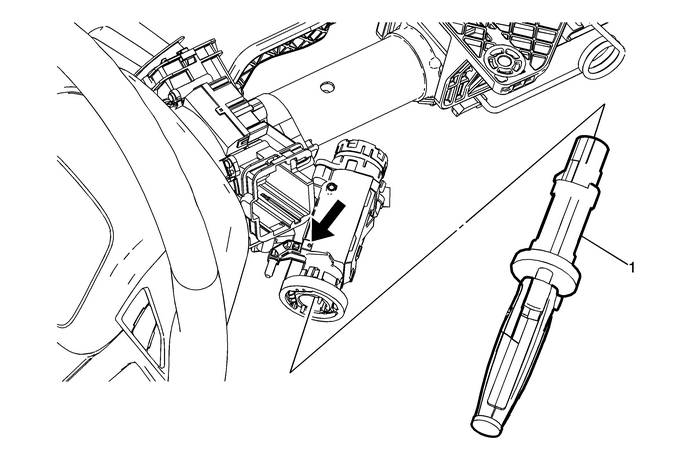

Ignition Lock Cylinder Replacement

Callout

Component Name

Preliminary ProceduresDisconnect the battery negative cable. Refer toBattery Negative Cable Disconnection and Connection.Remove the steering column shroud. Refer toSteering Column Shroud Replacement.
1	Ignition Lock Cylinder ProcedureTurn the ignition lock cylinder to the RUN position.Insert a pick-type tool into the proper hole on the ignition and start switch housingand press the lock tab on the ignition lock cylinder down.Pull the ignition lock cylinder out of the ignition and start switch housing.If installing a new ignition lock cylinder then refer toLock Cylinder Coding - Ignition.
