Chevrolet Equinox Service Manual: Ignition Coil Replacement - Bank 1 Engine Control

Chevrolet Equinox Service Manual / Powertrain / Internal Combustion Powertrain Control / Ignition Coil Replacement - Bank 1 Engine Control

Removal ProcedureRemove the intake manifold. Refer toIntake Manifold Replacement.

Ignition Coil Replacement - Bank 1 Engine Control

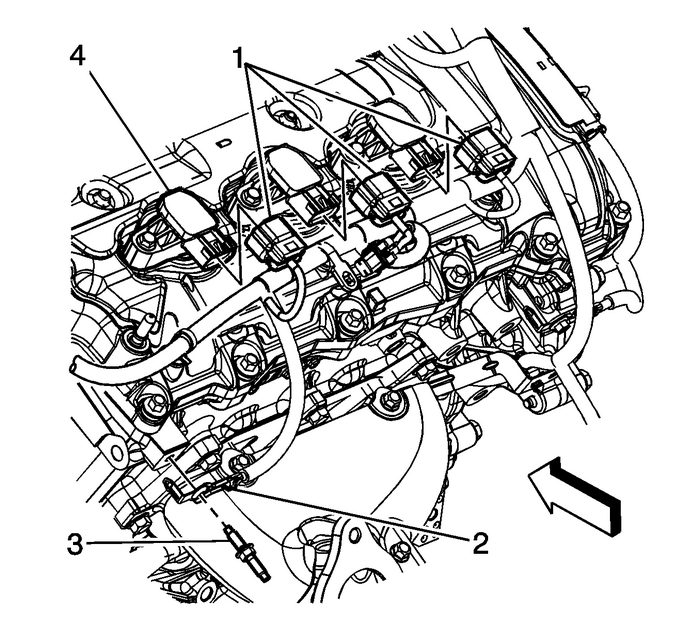

Disconnect the engine wiring harness electrical connector(s) (1) from the ignitioncoil(s) (4).

Ignition Coil Replacement - Bank 1 Engine Control

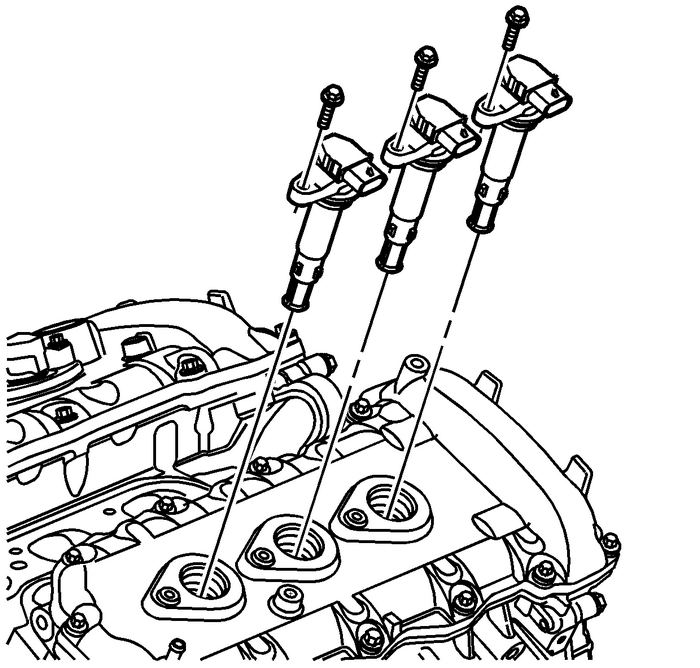

Remove the ignition coil bolt(s).Remove the ignition coil(s).Installation Procedure

Ignition Coil Replacement - Bank 1 Engine Control

Install the ignition coil(s).

Caution:Refer toFastener Caution.

Install the ignition coil bolt(s).

Tighten

Tighten the bolt(s) to 10-Y (89-lb-in).

Ignition Coil Replacement - Bank 1 Engine Control

Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s)(4).Install the intake manifold. Refer toIntake Manifold Replacement.
