Ignition and Start Switch Housing Replacement Ignition System

Ignition and Start Switch Housing Replacement

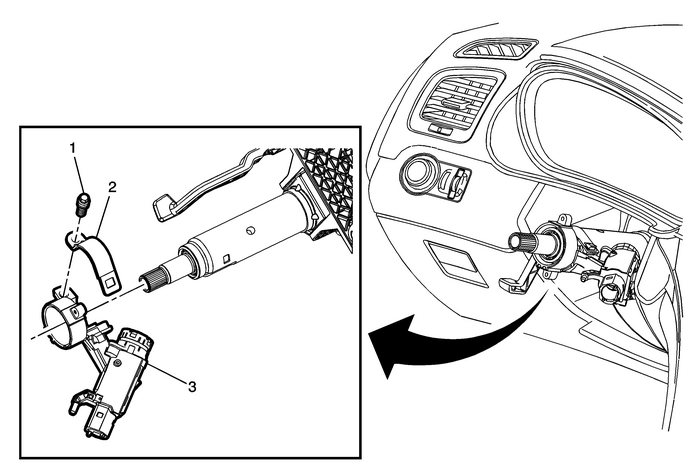

Callout

Component Name

Preliminary ProceduresRemove the theft deterrent module. Refer toTheft Deterrent Module Replacement.Remove the turn signal switch bracket. Refer toTurn Signal Switch Bracket Replacement.Disconnect the ignition and start switch electrical connector.
1	Ignition and Start Switch Housing Bolt Caution:Refer toFastener Caution. ProcedureUse any of the following common tools to remove the OLD ignition and start switchhousing bolt:An angle grinder and screwdriverA small hammer and chiselA screw extractorA center punchDiscard the OLD ignition and start switch housing bolt.Install the NEW ignition and start switch housing bolt and tighten until the bolthead breaks off.
2	Ignition and Start Switch Housing Strap
3	Ignition and Start Switch Housing Procedure Transfer components as necessary.

Engine Identification (LAF, LEA, or LUK)

Identification can be made through the use of the BroadcastCode label on the engine-(1) and the use of the partialVIN etched in one of two places - the primary location is on thestarter motor flange-( ...

Ignition and Start Switch Replacement Ignition System

Ignition and Start Switch ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the battery negative cable. Refer toBattery Negative Cable Disconnection and Connection.Disable the supplement ...
