Chevrolet Equinox Service Manual: Hood Strut Replacement Strut Assembly

Chevrolet Equinox Service Manual / Chassis / Suspension / Hood Strut Replacement Strut Assembly

Hood Strut Replacement Strut Assembly

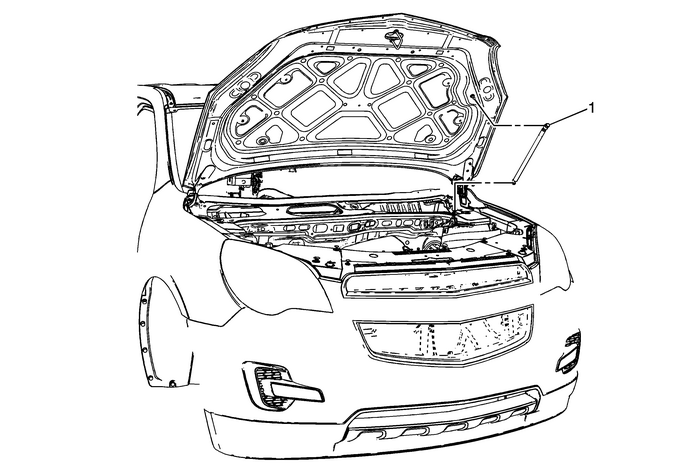

Hood Strut Replacement

Callout

Component Name

1

Hood Strut Assembly

Warning:When a hood hold open device is being removed or installed,provide alternate support to avoid the possibility of damage to thevehicle or personal injury.

Caution:Apply pressure only at the end of the liftgate/hood assistrod that you are removing or attaching. Do NOT apply pressure tothe middle of the rod because damage or bending will result.

Tip:Remove the metal clip at the ends of the hood strut, thenpull away from the stud.
