Generator Replacement (LEA) Starting System

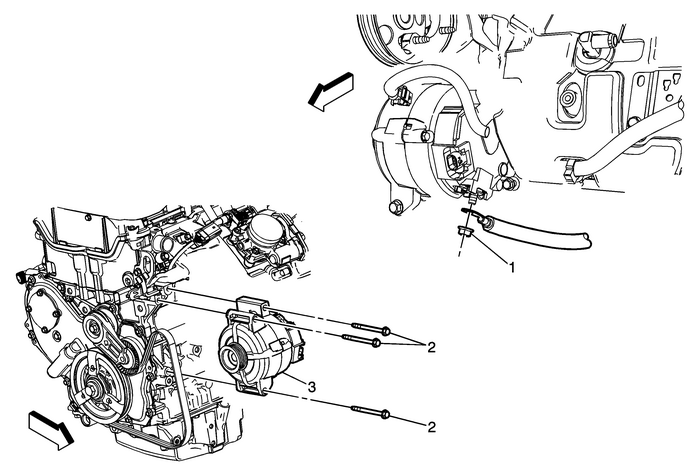

Generator Replacement

Callout

Component Name

Preliminary ProceduresDisconnect the negative battery cable. Refer toBattery Negative Cable Disconnection and Connection.Remove the drive belt. Refer toDrive Belt Replacement.Disconnect the engine harness generator connector.

1

Generator Battery Positivel Nut

Caution:Refer toFastener Caution

Tighten

20-Y(15-lb-ft)

2

Generator Bolt (QTY:-3)

Tighten

22-Y(16-lb-ft)

3

Generator
