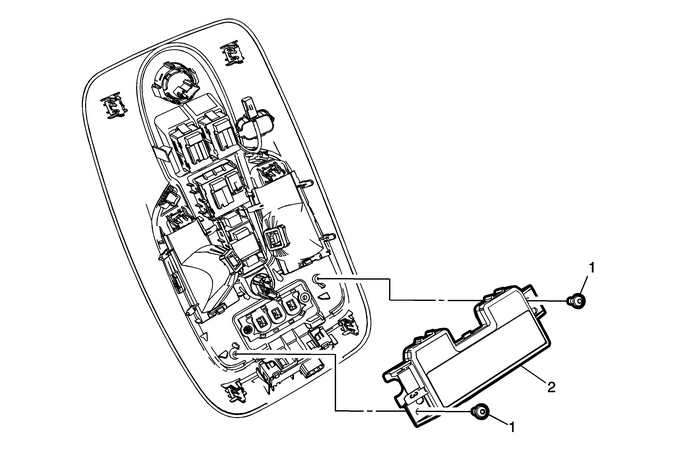

Garage Door Opener Transmitter Replacement

Callout

Component Name

Preliminary Procedure

Remove the roof console. Refer toRoof Console Replacement.

Garage Door Opener Transmitter Bolts (Qty:-2)

Caution:Refer toFastener Caution

Garage Door Opener Transmitter

ProcedureDisconnect the electrical connectors.Refer toControl Module Referencesfor programming and set-up procedures.
