Fuel Tank Pressure Sensor Replacement (NU6) Engine Control Engine Control Sensors Fuel Tank Pressure Sensor

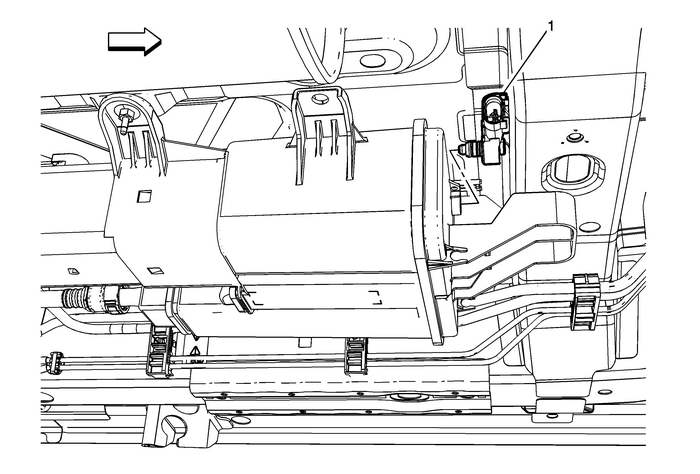

Fuel Tank Pressure Sensor Replacement

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Fuel Tank Pressure Sensor

ProcedureUse a flat bladed tool to remove the sensor.Disconnect the electrical connector.
Fuel Tank Fuel Pump Module Fuel Level Sensor Replacement Engine Control
Fuel Tank Fuel Pump Module Fuel Level Sensor ReplacementCalloutComponent NamePreliminary ProcedureRemove the fuel pump module. Refer toFuel Tank Fuel Pump Module Replacement.1Fuel Level SensorProcedur ...

Fuel Tank Pressure Sensor Replacement (Without NU6) Engine Control Engine Control Sensors Fuel Tank Pressure Sensor
Fuel Tank Pressure Sensor ReplacementCalloutComponent NamePreliminary ProceduresLower the fuel tank. Refer toFuel Tank Replacement.Raise and support the vehicle. Refer toLifting and Jacking the Vehicl ...
