Fuel Tank Fuel Pump Module Fuel Level Sensor Replacement Engine Control

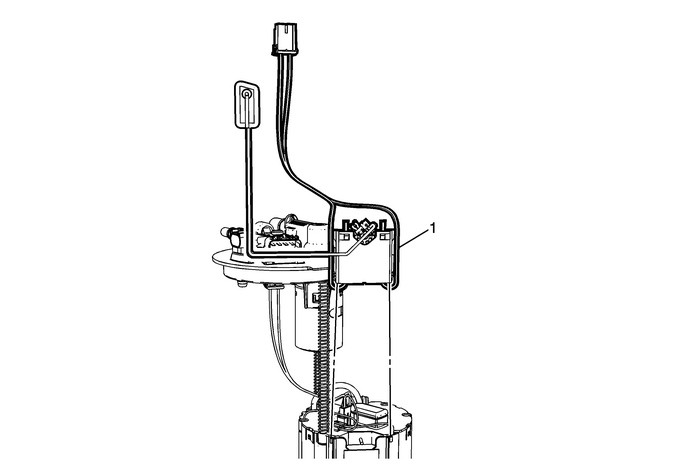

Fuel Tank Fuel Pump Module Fuel Level Sensor Replacement

Callout

Component Name

Preliminary Procedure

Remove the fuel pump module. Refer toFuel Tank Fuel Pump Module Replacement.

1

Fuel Level Sensor

ProcedureRelease the retaining tabs.Disconnect the electrical connector.
