Fuel Pump Cover Replacement Engine Control

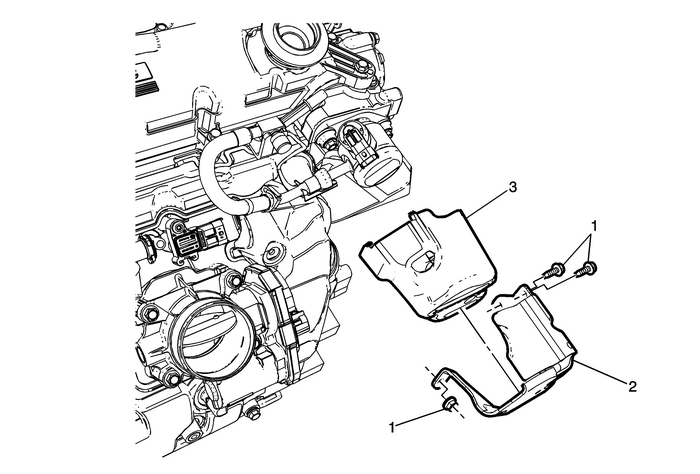

Fuel Pump Cover Replacement

Callout

Component Name

Fuel Pump Cover Fastener (Qty: 3)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

Fuel Pump Cover

Fuel Pump Insulator
