Chevrolet Equinox Service Manual: Fuel Pressure Sensor Replacement - Fuel Injection Fuel Rail Engine Control Engine Control Sensors
Fuel Pressure Sensor Replacement - Fuel Injection Fuel RailCallout
Component Name
|
Preliminary Procedure Remove the fuel pipe shield. Refer toFuel Pipe Shield Replacement. |

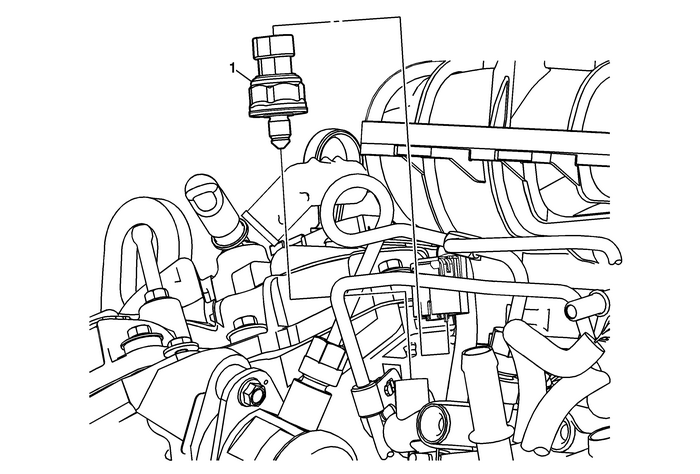

1 | Fuel Injection Fuel Rail Fuel Pressure Sensor Caution:Refer toFastener Caution. Tighten33-Y(25-lb-ft) |
