Fuel Pressure Sensor Replacement - Fuel Feed Pipe Engine Control Engine Control Sensors

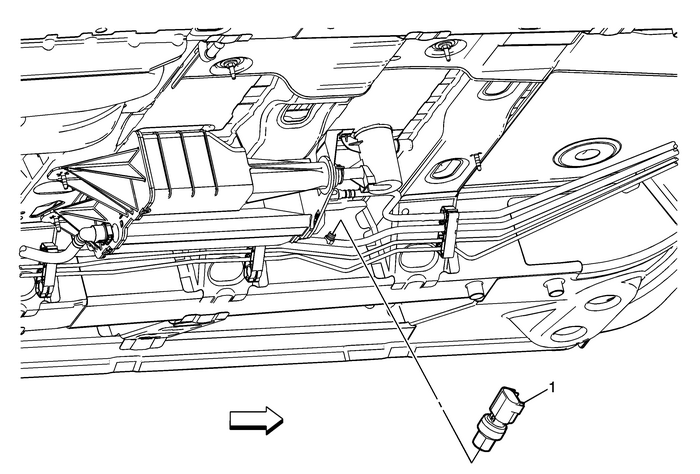

Fuel Pressure Sensor Replacement - Fuel Feed Pipe

Callout

Component Name

Preliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Fuel Pressure Sensor

Caution:Refer toFastener Caution.

ProcedureDisconnect the electrical connector.Do not reuse the fuel pressure sensor O-ring seal. Lubricatethe NEW fuel pressure sensor O-ring seal with clean engineoil.Tighten

9-Y(80-lb-in)
