Fuel Pipe Shield Replacement Engine Control

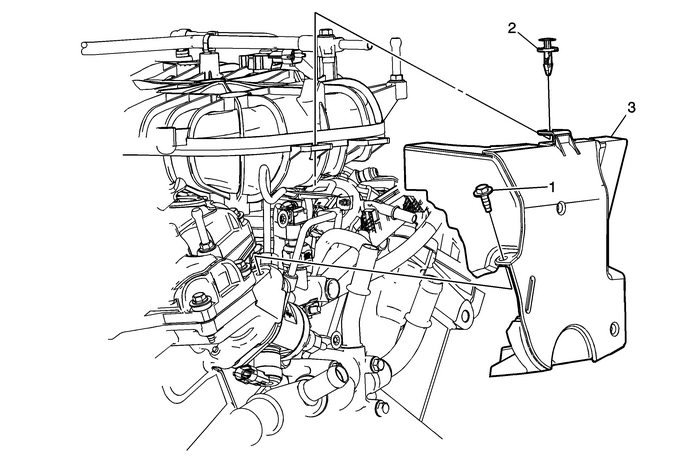

Fuel Pipe Shield Replacement

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

Retainer

Fuel Pipe Shield
