Fuel Injector and Fuel Rail Replacement Engine Control

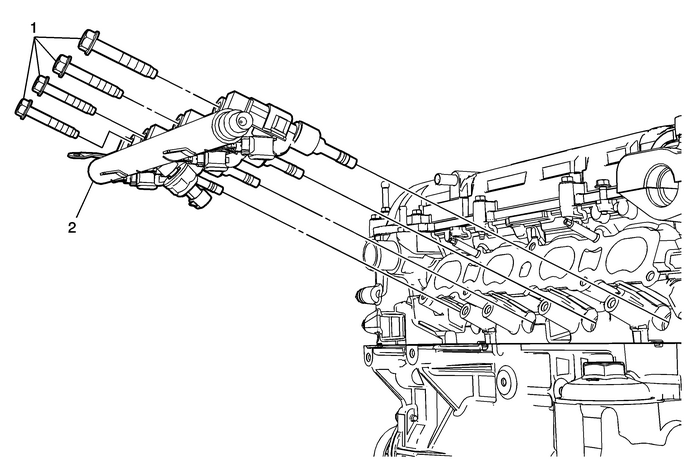

Fuel Injector and Fuel Rail Replacement

Callout

Component Name

Preliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold. Refer toIntake Manifold Replacement.Remove the fuel feed intermediate pipe. Refer toFuel Feed Intermediate Pipe Replacement.

Fuel Injection Fuel Rail Fastener (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

25-Y (18-lb-ft)

Fuel Injection Fuel Rail

ProcedureDisconnect the electrical connector.Remove the fuel rail and injectors as an assembly. Refer toFuel Rail and Injectors Removal.It is necessary to rebuild the fuel injectors. Refer toFuel Rail and Injectors Cleaning and Inspection.Install the fuel rail and injectors as an assembly. Refer toFuel Rail and Injectors Installation.

Fuel Injection Fuel Rail Fuel Pressure Sensor Replacement Engine Control Engine Control Sensors

Fuel Injection Fuel Rail Fuel Pressure Sensor ReplacementCalloutComponent NamePreliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold. Refer toI ...

Fuel Line Replacement - Chassis Engine Control

Fuel Line Replacement - ChassisCalloutComponent NamePreliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold cover. Refer toIntake Manifold Cover ...
