Fuel Feed Intermediate Pipe Replacement

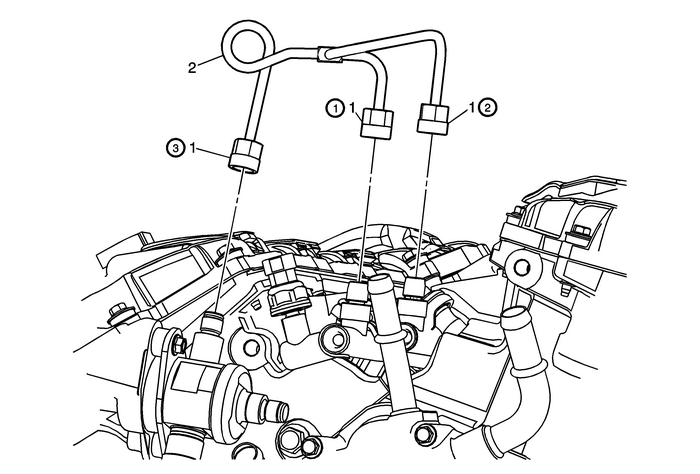

Callout

Component Name

Preliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the Intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove the fuel pipe shield. Refer toFuel Pipe Shield Replacement.

Fitting (Qty: 3)

Caution:Refer toFastener Caution.

Tighten

Tighten the fittings in sequence (1, 2, 3).First Pass15-Y(11-lb-ft)Second Pass30-Y(22-lb-ft)

Fuel Feed Intermediate Pipe

ProcedureDiscard the pipe when removed and install a NEW pipe.Lubricate the pipes with silicon free engine oil. Refer toAdhesives, Fluids, Lubricants, and Sealers.Pressure up the fuel system and check for leaks.

Fuel Feed Hose Replacement Engine Control

Fuel Feed Hose ReplacementCalloutComponent NamePreliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Raise and support the vehicle. Refer toLifting and Jacking the Vehic ...

Fuel Feed Intermediate Pipe Replacement Engine Control

Fuel Feed Intermediate Pipe ReplacementCalloutComponent NamePreliminary ProceduresRelieve the system pressure. Refer toFuel Pressure Relief.Remove the fuel pump cover. Refer toFuel Pump Cover Replacem ...
