Chevrolet Equinox Owners Manual: Front Wiper Blade Replacement
Chevrolet Equinox Owners Manual / Vehicle Care / Vehicle Checks / Wiper Blade Replacement / Front Wiper Blade Replacement
To replace the wiper blade:
- Pull the wiper assembly away from the windshield.

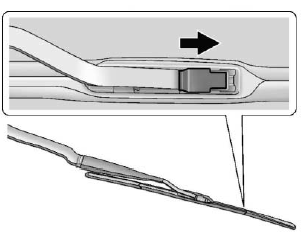

- Lift up on the latch in the middle of the wiper blade where the wiper arm attaches.
- With the latch open, pull the wiper blade down toward the windshield far enough to release it from the J-hooked end of the wiper arm.
- Remove the wiper blade.
- Reverse Steps 1-3 for wiper blade replacement.
Wiper Blade Replacement
Windshield wiper blades should be
inspected for wear and cracking.
See Maintenance Schedule.
Replacement blades come in
different types and are removed in
different ways. For proper type and
...
Rear Wiper Blade Replacement
The rear wiper blade and wiper arm
have a cover for protection.
To remove the cover:
Slide a plastic tool under the
cover and push upward to
unsnap.
Slide the cover toward the
...
