Front Wheel Drive Shaft Seal Replacement - Right Side Automatic Transmission Unit

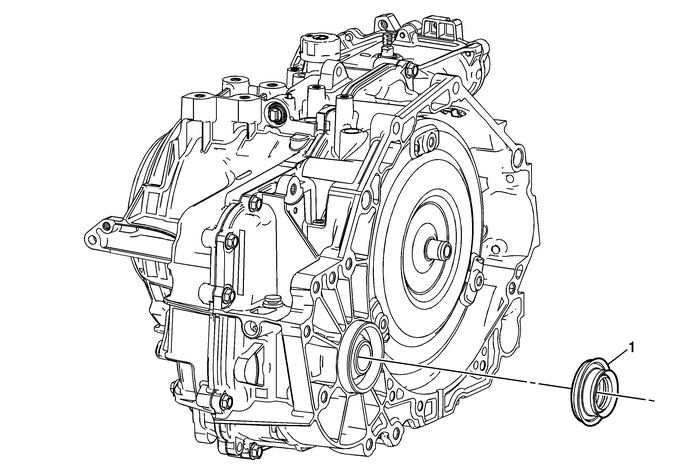

Front Wheel Drive Shaft Seal Replacement - Right Side

Callout

Component Name

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the intermediate drive shaft. Refer toFront Wheel Drive Intermediate Shaft Replacement.

Right Front Wheel Drive Shaft Oil Seal

Tip:

For seal removal use J 6125-B Slide Hammer with J 23129 Universal Seal Remover.For seal installation use J 8092 Driver Handle with DT-47790 Seal Installer.Special ToolsDT-47790 Seal InstallerJ 6125-B Slide HammerJ 8092 Driver HandleJ 23129 Universal Seal Remover

Front Wheel Drive Shaft Seal Replacement - Left Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Replacement - Left SideCalloutComponent NamePreliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the left wheel drive shaft. Refer toFro ...

Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing SideCalloutComponent Name1Torque Converter-–-Front Wheel Drive Shaft Oil Seal AssemblyNote:Use the open side of DT-46629-A seal in ...
