Front Wheel Drive Shaft Seal Replacement - Left Side Automatic Transmission Unit

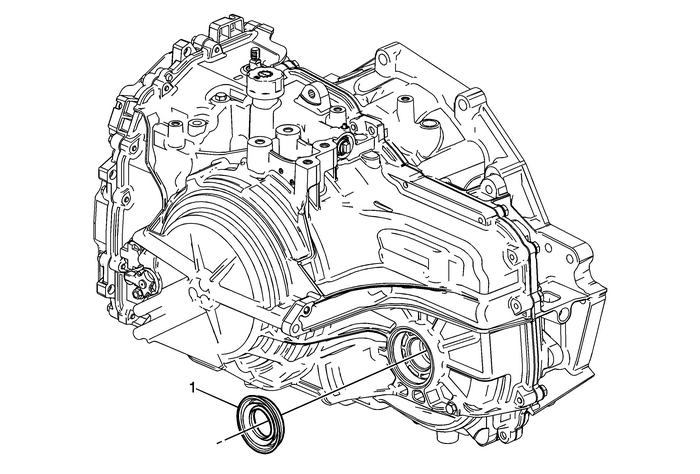

Front Wheel Drive Shaft Seal Replacement - Left Side

Callout

Component Name

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the left wheel drive shaft. Refer toFront Wheel Drive Shaft Replacement.

1

Left Front Wheel Drive Shaft Oil Seal

Tip:

For seal removal use J 6125-B slide hammer with J 23129 universal seal remover.For seal installation use GE-8092 driver handle with DT-47790 seal installer.Special ToolsDT-47790 Seal InstallerGE-8092 Driver HandleJ 6125-B Slide HammerJ 23129 Universal Seal Remover
