Front Side Door Lock Cylinder Rod Replacement Locks Mechanical Locks

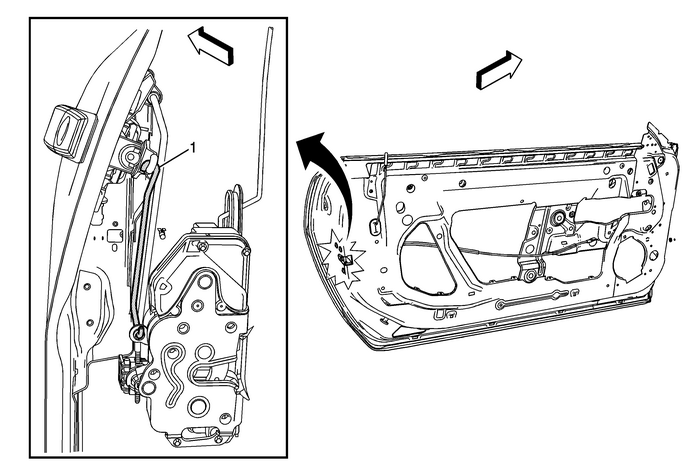

Front Side Door Lock Cylinder Rod Replacement

Callout

Component Name

Preliminary ProceduresRemove the front side door trim panel. Refer toFront Side Door Trim Panel Replacement.Remove the front side door latch. Refer toFront Side Door Latch Replacement.

1

Front Side Door Locking Rod

ProcedureRemove the water deflector.Inspect the door for proper operation before installing thedoor trim panel.
