Front Seat Belt Anchor Plate Tensioner Cover Replacement Disc Brakes Brake Calipers

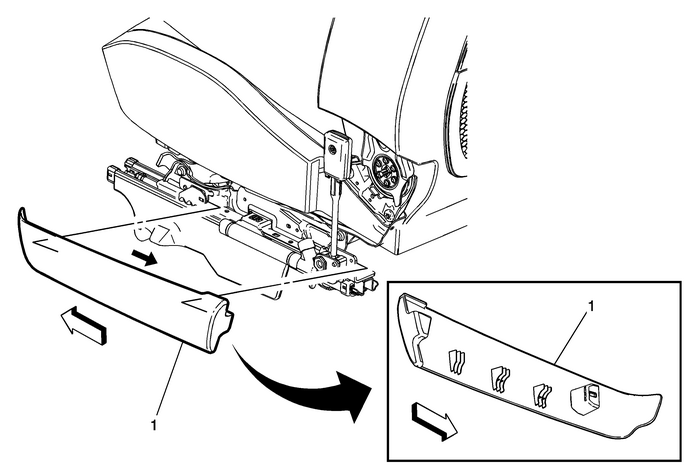

Front Seat Belt Anchor Plate Tensioner Cover Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver or passenger seat outer adjuster finish cover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.

1

Front Seat Belt Anchor Plate Tensioner Cover

ProcedureRaise the seat to the highest seat position.Unclip the seat tensioner wiring harness from the cover.Release the rear tabs on the cover.Slide the finish cover rearward off the tensioner rod and bracket.
