Front Lower Control Arm Bracket Brace Replacement Control Arms Lower Control Arm

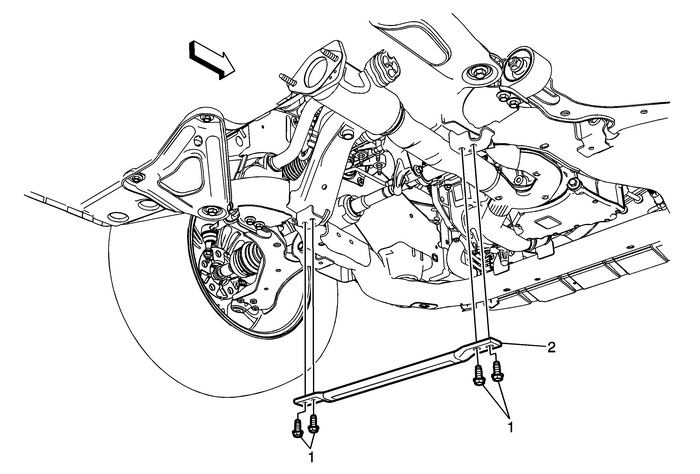

Front Lower Control Arm Bracket Brace Replacement

Callout

Component Name

Warning:Refer toExhaust Service Warning.

Preliminary Procedure

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle

Front Lower Control Arm Bracket Brace Bolt(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

30-Y(22-lb-ft).

Front Lower Control Arm Bracket Brace
