Front Fog Lamp Bulb Replacement Lighting Exterior Lighting Fog Lamp

Front Fog Lamp Bulb Replacement

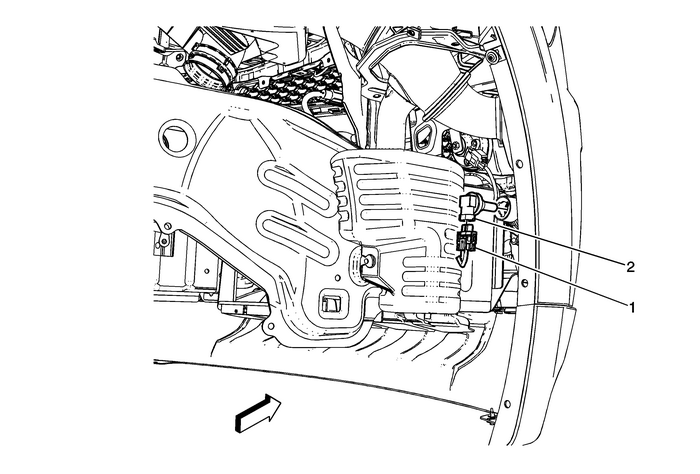

Callout

Component Name

Preliminary ProceduresRemove the front wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.Disconnect the fog lamp bulb electrical connector.

1

Fog Lamp Bulb Electrical Connector

2

Front Fog Lamp Bulb

Warning:Refer toHalogen Bulb Warning.

Procedure

Rotate the fog lamp bulb socket counter-clockwise and removefrom the fog lamp projector.
