Front Fog Lamp Bezel Replacement (Terrain) Lighting Exterior Lighting Fog Lamp

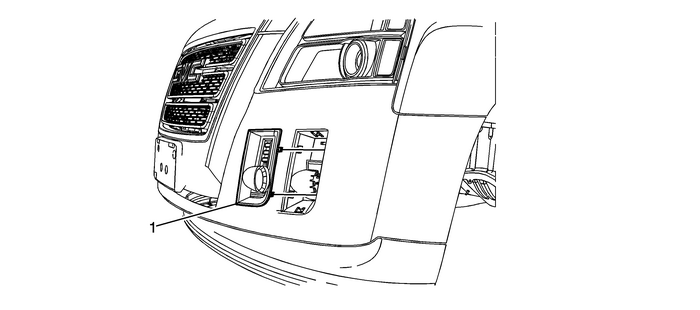

Front Fog Lamp Bezel Replacement

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.

Front Fog Lamp Bezel

Procedure

Release the tabs on the bezel from the front bumper fasciaand push outward on the bezel in order to remove.

Front Fog Lamp Bezel Replacement Lighting Exterior Lighting Fog Lamp

Front Fog Lamp Bezel ReplacementCalloutComponent NamePreliminary ProcedureRemove the front bumper fascia assembly. Refer toFront Bumper Fascia Replacement.1Front Fog Lamp Bezel Assembly ScrewCaution:R ...

Front Fog Lamp Bulb Replacement Lighting Exterior Lighting Fog Lamp

Front Fog Lamp Bulb ReplacementCalloutComponent NamePreliminary ProceduresRemove the front wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.Disconnect the fog lamp bulb electrical connecto ...
