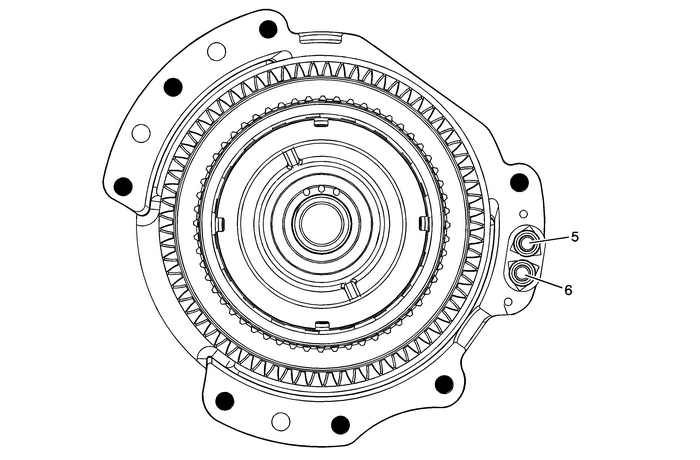

Front Differential Transfer Drive Gear Support–Case Side

Front Differential Transfer Drive Gear Support - Case Side Automatic Transmission Unit

(5)	TCC Release
(6)	TCC Apply

Taper Bearing Preload Selective Specifications Automatic Transmission Unit

Front Differential Drive Pinion Gear and Differential ThrustWasher Selection ChartThrust Washer O.D. Color CodeWasher ThicknessMetricEnglishBrown0.494-mm0.020-inPurple0.545-mm0.022-inBlack0.596-mm0.02 ...

Front Differential Transfer Drive Gear Support - Torque Converter and DifferentialHousing Side Automatic Transmission Unit

Front Differential Transfer Drive Gear Support–Torque Converter and Differential Housing Side(5)TCC Release(6)TCC Apply ...
