Removal

Front Differential Drive Pinion Gear Bearing Replacement Automatic Transmission Unit

Removal

Callout

Component Name

Front Differential Drive Pinion Gear Bearing

Note:

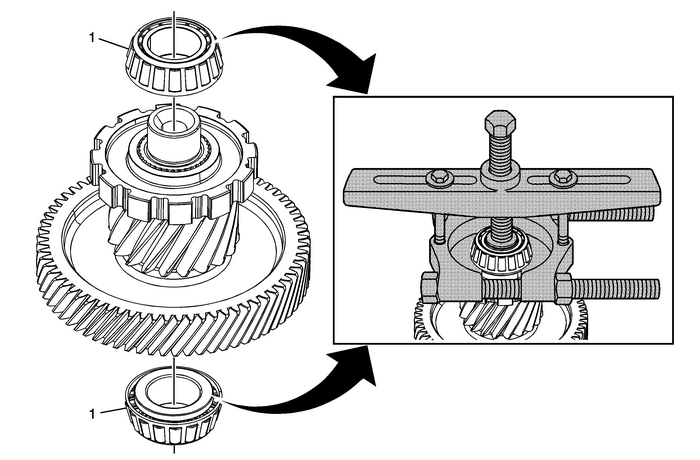

When removing the front differential drive pinion gear bearing use DT 41816-2 step plate.Use DT 8433-1 puller bar or equivalent with bolts 2–3/8-x-3-x-24.Special ToolsDT 8433-1 Puller Bar or equivalentDT 22912-B Split Plate Bearing Remover or equivalentDT 41816-2 Step Plate

For equivalent regional tools, refer toSpecial Tools.

Installation

Front Differential Drive Pinion Gear Bearing Replacement Automatic Transmission Unit

Installation

Callout

Component Name

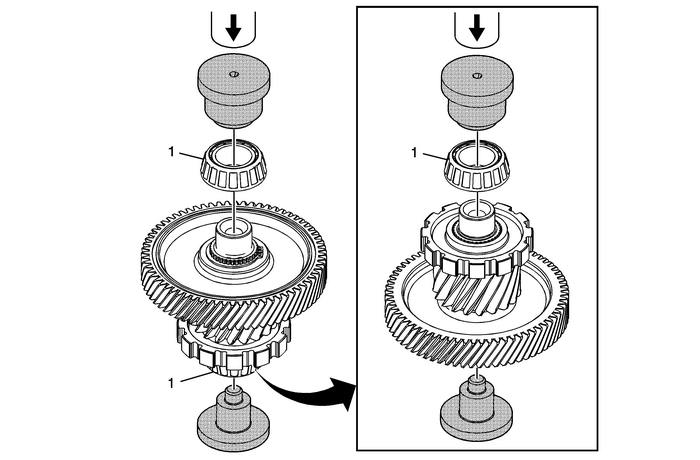

1	Front Differential Drive Pinion Gear Bearing Caution:Pressing against the bearing assembly can damage the bearingand cause premature bearing failure. Special Tools DT-47928 Bearing Installer For equivalent regional tools, refer toSpecial Tools.

Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement Automatic Transmission Unit

Table 1: RemovalTable 2: InstallationRemovalRemovalCalloutComponent Name1Front Differential Drive Pinion Gear Bearing CupCaution:Failure to apply the lubricant will cause damage to the boltand nut thr ...

Front Differential Transfer Drive Gear Support Assembly Disassemble Automatic Transmission Unit

Table 1: Seal RemovalTable 2: Fluid Passage Tube RemovalSeal RemovalSeal RemovalCalloutComponent NameCaution:Do not remove the transfer drive gear bearing retaining nut.The drive gear and bearing are ...
