Front Differential Carrier Installation (6T40/45/50) Automatic Transmission Unit

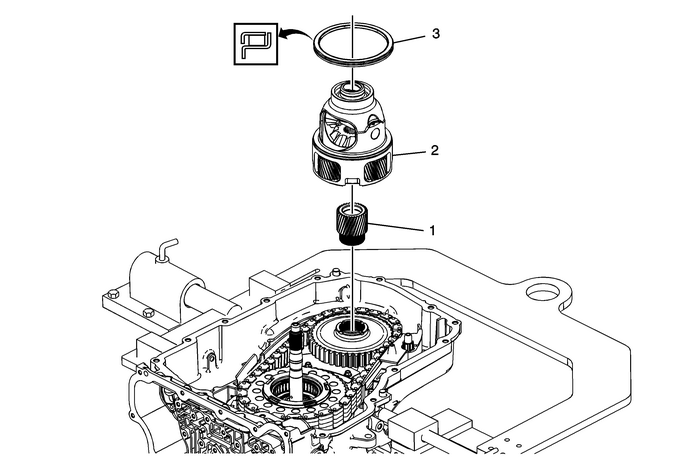

Front Differential Carrier Installation

Callout

Component Name

1

Final Drive Sun Gear

2

Differential Carrier Assembly

3

Front Differential Carrier Bearing Asembly
